Small tabletop slit coater

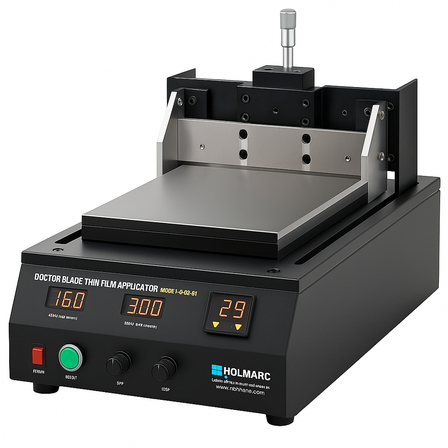

Small Doctor Blade Type Thin Film Fabrication Device
The doctor blade type thin film applicator is a tool and technique for uniformly applying liquid or slurry materials in a thin layer onto a substrate. It is relatively simple yet highly versatile, widely used in various laboratories and industrial settings for creating coatings and thin films. It is equipped with a stainless steel hot plate with a vacuum suction function for placing the substrate. Temperature settings are made using a digital PID controller on the front panel. The film thickness is adjusted by using a micrometer to set the gap between the substrate and the doctor blade. The slurry is dropped onto the substrate, and the blade can be moved horizontally simply by pressing a button using the built-in electric moving stage. The speed and movement amount are set using a knob on the front panel and are displayed digitally on an LED display.
basic information
●Device Specifications ・Coating Area: 290 x 210 mm (290mm direction is variable) ・Slit Movement: Can be set in 1mm increments using the knob on the front panel ・Position Display: 7-segment LED digital display ・Slit Speed: 0.0 to 16.0 mm/sec, can be set in 0.1 mm/sec increments ・Speed Adjustment: Using the knob on the front panel ・Speed Display: 7-segment LED digital display ・GAP Range: 0.01 to 5.00 mm ・GAP Adjustment: Micrometer ・Slit Operation: Motor controlled ・Table Material: SUS304 ・Blade Material: SUS304 ・Substrate Fixation: Fixed to the table by vacuum suction holes and vacuum pump (accessory) ・Table Temperature Control: Ambient temperature to 100℃, set in 1℃ increments ・Power Input: AC100V or 230V (selectable), 50 or 60Hz (selectable) ・Power Consumption: 50W (without temperature control), 800W (with temperature control), 1600W (with temperature control + vacuum suction) ・Body Weight: Approximately 40kg
Price information
Please select the power supply voltage and frequency, and let us know whether you need the included vacuum pump, and we will provide you with a quotation.
Delivery Time
Model number/Brand name
HO-DB-01
Applications/Examples of results
For research and development purposes such as Li-Ion secondary batteries, solar power, and organic EL cells.
