RAYGU【UV Curing Adhesive 'Raygu GG90' (Adhesive for Glass)
Next-generation adhesive that goes beyond "just stick"! No need for drilling, cures in just 1 second with high transparency UV adhesive.
The 【Reig GG90】 is a UV-curable glass adhesive that can be securely fixed without the need for drilling in glass applications. ■ Initial curing in just "1 second" by exposing it to a dedicated 365nm UV light ■ Low viscosity acrylic resin with a viscosity of 90mPa·s quickly penetrates gaps of less than 0.1mm ■ Solvent-free with minimal odor, making it ideal for work in clean rooms ■ Excellent transparency and durability after installation, achieving a "smart adhesive construction" that replaces traditional fixing hardware. 【Ideal for no-drill solutions】 ■ Fixing glass parts that cannot be drilled ■ Preventing the detachment of no-hole products (plates and brackets) ■ Enhancing work efficiency and maintaining design aesthetics on-site 【Scene-specific proposals】 【Museums and Art Galleries】 ■ Corner bonding of glass display cases ■ Can be combined with hinges and locking hardware without compromising transparency for long-term use 【Research Facilities and Universities】 ■ Same-day prototyping of chemical splash prevention screens and observation windows ■ Safe solvent-free construction even in drafts and clean rooms
basic information
【Specifications (Excerpt)】 ■Type: Chemical reaction type adhesive (UV curing) ■Main component: 100% acrylic resin ■Viscosity: 90 mPa·s ■Initial curing: 1 second at 6 mW/cm² ■Complete curing: 24 hours ■Applicable environment: Recommended clean environment at room temperature 20–25℃ / humidity below 50% ■Usage temperature range: Up to 130℃ ■Ultraviolet wavelength: 365 nm (recommended irradiation amount of 300 mJ/cm² or more) ■Storage: Avoid direct sunlight and store in a cool, dark place ■Keywords: UV adhesive, UV curing, glass bonding, showcase construction, solvent-free adhesive, no holes, attachment hardware assistance, transparent adhesive
Price range
Delivery Time
Applications/Examples of results

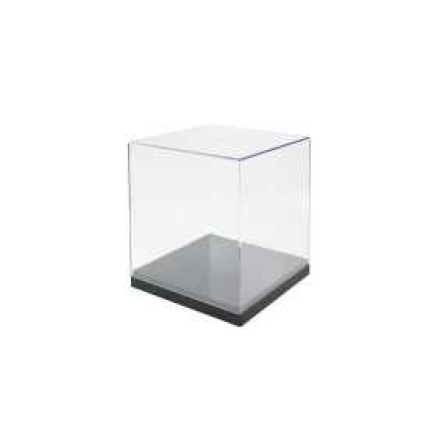

【Applications】 ■ Jewelry cases ■ Face-to-face counters ■ Glass partitions ■ Glass cases ■ Glass screens 【Examples of Use】 ■ Corner bonding of high transparency glass cases (museums, jewelry displays) ■ Preventive measures for chemical splashes on observation windows or screens ■ Auxiliary fixation to prevent the detachment of no-hole hardware ■ Additional reinforcement of rib materials for glass counters and partitions *For more details, please refer to the PDF document or feel free to contact us.
