Hakama Hinge (with Frame)
No drilling required, supports 80kg! High load capacity × high workability no-hole hinge [frame-mounted hakama hinge]
The "Framed Hakama Hinge" is a super-large no-hole hinge for glass that can support up to 80 kg. The dedicated frame eliminates the need for glass processing, enabling a short construction period and high-precision installation. This product has a high track record as a "no-drilling solution" even in custom fixtures and display cases. **Features | No-Hole Solution Compatibility** - **High Load Capacity Specification** With a load capacity of 80 kg, it is safe for heavy display items and is ideal for public and cultural facilities. - **Efficient Installation Without Drilling** Combined with a dedicated aluminum frame, it eliminates the need for glass processing, balancing construction precision and work efficiency. - **Compatible with Glass Thickness of 8-12 mm** Covers multiple standards with one model, streamlining inventory management. - **No Clearance Adjustment Needed** Pre-adjusted at the factory, no fine adjustments are necessary on-site. **Configuration and Specifications** - **Hakama Hinge** - Material: SUS304 (hairline finish, polished to about #400) - **OSM1-3 Aluminum Frame** - Material: Aluminum / Finish: B2 - **Optional Items** - Magnet-compatible parts - Door stops - FIX glass sets - **Custom Options** - Powder coating and other customizations are also available.
basic information
【Load Capacity and Usage Conditions】 ■Applicable Glass Thickness: 8 / 10 / 12mm ■Load Capacity: 80kg (per set) ■Maximum Dimension Guidelines: 12mm thick = up to 3000mm, 10mm = up to 2600mm, 8mm = up to 2200mm ■Maximum Hinge Size: 1450mm ■Keywords: Wall-mounted display, exhibition showcase, museum display case, large glass showcase, no holes, unprocessed, hinge, stainless steel, hakama hinge
Price range
Delivery Time
Applications/Examples of results

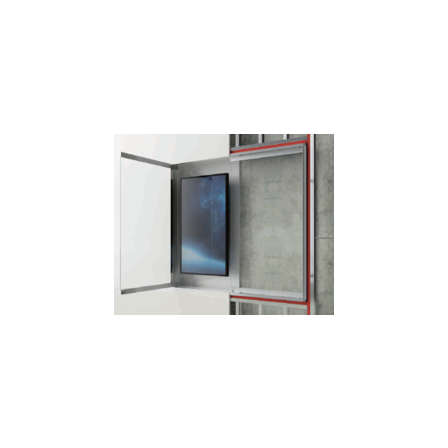

【Uses】 ■ Large glass display cases (secure fixation of heavy display items) ■ Installation of custom glass fixtures in commercial facilities and museums ■ Installation of glass swing doors in high-end interior stores ■ Movable opening and closing sections for digital signage and protective glass 【Application Scenarios】 ■ Immediate delivery and short lead time for sites with time constraints ■ Architectural design projects seeking hardware for swing doors that balance aesthetics and durability *For more details, please refer to the PDF document or feel free to contact us.
