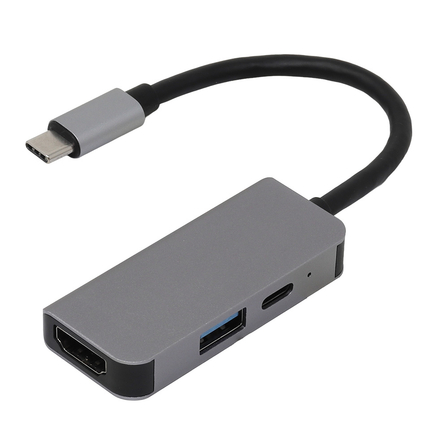

USB Type-C Connection Multi-Adapter 3in1
With just one USB-C, you can solve the problem of insufficient ports by combining video, USB, and power.
This is a USB Type-C connected 3-in-1 adapter equipped with one port each for HDMI, USB Type-A, and USB PD (Power Delivery). It allows you to output video and audio via HDMI from computers, tablets, or smartphones that support USB Type-C (DP Alt mode). It supports a maximum high resolution of 4K/30Hz (3840×2160/30Hz). The external display can operate in both extended and mirrored modes (depending on the performance of the output device). It features a Type-A port that supports USB 5Gbps, enabling high-speed data transfer of 5Gbps in environments compatible with USB 3.2 Gen 1x1 (theoretical value). It also includes a Type-C charging port that supports USB PD 3.0, allowing you to use it while charging your computer with a USB PD compatible charger (supports up to 100W). The ports are arranged on one side, ensuring they align neatly even when used simultaneously. An indicator lights up blue during use. No driver is required; it operates with the standard drivers of the output devices.
basic information
HDMI Port Type A 19 pins × 1 Maximum resolution: 4K / 30Hz (3840×2160 / 30Hz) HDCP 1.4 / 2.3 compatible USB Port Standard-A × 1 Supported standards: USB 3.2 Gen 1 (backward compatible with USB 3.1 Gen 1 / 3.0 / 2.0 / 1.1) Maximum data transfer speed: 5Gbps (theoretical value) PD charging port: Type-C × 1 (supports PD 100W, charging only) Cable / Connector (directly attached to the main unit): USB Type-C male System Requirements Computers / tablets / smartphones with Type-C connectors compatible with USB 3.2 Gen 1 or higher HDMI: Type-C port compatible with DisplayPort Alt mode Size: Approximately W28 × D63 × H10mm (excluding cable) Housing material: Aluminum Cable length: Approximately 10cm
Price range
Delivery Time
Model number/Brand name
USB-CDOCK02
Applications/Examples of results
This is a USB Type-C 3-in-1 adapter equipped with one port each for HDMI, USB Type-A, and USB PD (Power Delivery).
