Ultra-Precision Coating "Delta Printing System"
A dispenser that can draw lines of 1 micron!

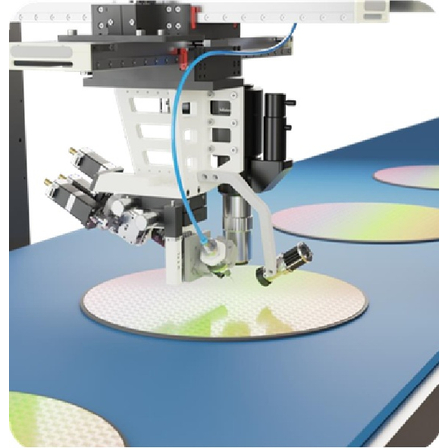

The Delta Printing System, equipped with XTPL's UPD print head, is a standalone/batch system used for research and development as well as prototyping. It employs a unique dispensing technology that enables high-precision material printing at the nanoscale, playing a crucial role in next-generation electronics manufacturing, such as electronic circuit repair, high-density wiring, and microLED connections. In the printing industry, high-definition representation is a critical factor that influences product quality. Particularly in fields that require fine patterns and designs, accurate ink application is essential. Low ink application precision can lead to image blurriness and reduced color reproduction, potentially diminishing the value of the product. Our ultra-precision coating system addresses these challenges with the ability to draw lines as fine as 1 micron. 【Application Scenarios】 - Microdot printing - Direct application of photoresist - High-resolution on-chip antennas 【Benefits of Implementation】 - Achievement of high-definition printing quality - Enhancement of product added value - Improvement of yield
basic information
【Features】 - Ultra-high precision printing resolution: Capable of forming structures at sub-micron (less than 1μm) levels - Compatible with a wide range of materials, including conductive inks containing silver nanoparticles and insulating materials, with viscosities from 10 to 1,000,000 cP - Supports various substrates from flat to 3D structures, including glass, silicon, polyimide, PET, and PDMS - Display repair: Open circuit repair and pad reconstruction for TFT and microLEDs - MicroLED connections: Achieves precise conductive connections for microLED integration in AR/VR devices, smartwatches, and automotive displays - 3D integrated circuits and advanced packaging: Facilitates the manufacturing of system-on-chip and high-density interconnects through material filling for microbumps and through-silicon vias (TSV) - MEMS and biosensors: Enables the production of fine sensors and actuators through high-precision placement of nanomaterials 【Our Strengths】 Alpha Electronics Co., Ltd. has been committed to contributing to the electronics industry since its establishment in 1983, expanding its business globally. We value our customers' feedback and strive to provide better products.
Price range
Delivery Time
Model number/Brand name
Delta Printing System
Applications/Examples of results
For more details, please contact us.
