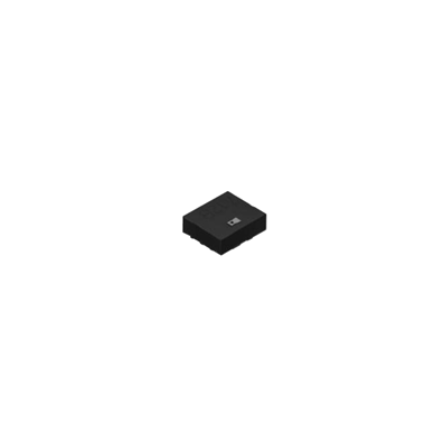

Humidity Sensor HSHCA (SMD Type) Series
Accurately detects humidity up to 100% in a small package.
Achieving high linearity in the industry's smallest size with a capacitance change type humidity sensor.
basic information
Basic Information HSHCAA006A HSHCAL001B Size 2.5 x 2.2 x 1.0mm 2.0 x 2.0 x 0.88mm Features Analog output I2C digital output, with temperature measurement function Humidity Detection Range 0–100%RH 0–100%RH Measurement Accuracy ±5%RH ±1.5%RH (25℃, 50%RH) Operating Range -10℃ to +85℃ -20℃ to +85℃ Power Supply Voltage 2.2–3.6V 1.8V ±5%
Delivery Time
OTHER
Applications/Examples of results
Air conditioner, air purifier, etc.
