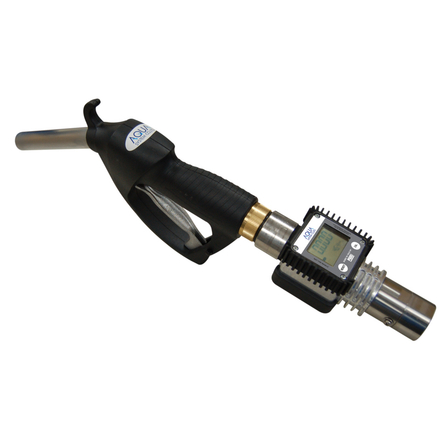

Measuring Manual Gun Nozzle GN-AL3025K24 (FA/FR)
It is convenient to attach it to the end of a hose when combined with an electric pump or air pump.
"Measurement Manual Gun Nozzle Series" GN-AL3025K24 (for light oil and kerosene) GN-AL3025K24FA (for light oil and kerosene / exclusive for FA-100) GN-AL3025K24FR (for light oil and kerosene / exclusive for FR-200) "Benefits" ● Easy operation at your fingertips ● Cost reduction through liquid management "Features" ● Dispenses when squeezed, stops when released ● Includes lever hook ● Equipped with flow meter ● Not suitable for use with natural drop or siphon methods
basic information
【Specifications (Excerpt)】 <GN-AL3025K24> ● Liquid used: Kerosene, light oil ● Flow rate range (L/min): 6 to 120 ● Maximum operating pressure (Mpa): 1 ● Included fittings: Swivel ● Connection diameter: Rc1 ● Connection material: Body AL/PP/FRP/Iron/SUS/Bs, Gasket NBR/FKM ● Weight (kg): 1.3 *For more details, please refer to the PDF document or feel free to contact us.
Price range
Delivery Time
Model number/Brand name
GN-AL3025K24（FA/FR）
Applications/Examples of results
* For more details, please refer to the catalog or feel free to contact us. * Please note that the products introduced in the video may have variations in specifications for the same model. * The products shown in the video are from the time of filming. The design and specifications of the products may differ at the current time or during the sales period. Thank you for your understanding. * It cannot be used for free fall. * The appearance may change without notice.
