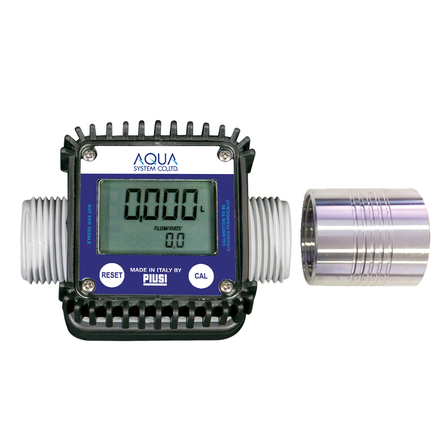

Simple turbine flow meter LCD digital display TB-K24-Ad
Ideal for managing AdBlue liquid - Digital flow meter for measuring discharge volume.
◎ Simple battery-operated flow meter with turbine digital method It is compact, making it easy to combine with a gun nozzle. It is inexpensive and allows for the management of AdBlue liquid. *Not waterproof. Do not immerse the meter in liquid. ◎ Display panel orientation can be changed The display panel can be attached in four directions with just one screwdriver. 《Advantages》 ● Compact, making it easy to combine with a gun nozzle ● Allows for checking the discharge amount at hand 《Features》 ● Calibration with a repeatability of 0.2% ● Digital display screen (uses two AA batteries) ● By attaching a socket, one side can be converted to a female thread *Please be careful of liquid leakage when connecting, as the connection port has parallel threads.
basic information
【Specifications】 ● Measurement method: Turbine ● Liquid used: AdBlue, water ● Flow rate range (L/min): 6 to 120 ● Maximum operating pressure (Mpa): 2 ● Connection diameter: Both ends G1 male (includes one G1 socket) ● Maximum display scale (L): Settlement 5 digits (0.01 to 99999) / Total settlement 6 digits (0.1 to 999999) ● Accuracy (%): ±1 (Repeatability 0.2) ● Connection material: Body PP/SUS, gasket NBR ● Weight (kg): 0.4 *For more details, please refer to the PDF document or feel free to contact us.
Price range
Delivery Time
Model number/Brand name
TB-K24-Ad
Applications/Examples of results
* For more details, please refer to the catalog or feel free to contact us. * Please note that the products introduced in the video may have variations in specifications for the same model. * The products shown in the video are from the time of filming. The design and specifications of the products may differ at the current time or depending on the sales period. Thank you for your understanding. * It cannot be used for free fall. * The appearance may change without prior notice.
