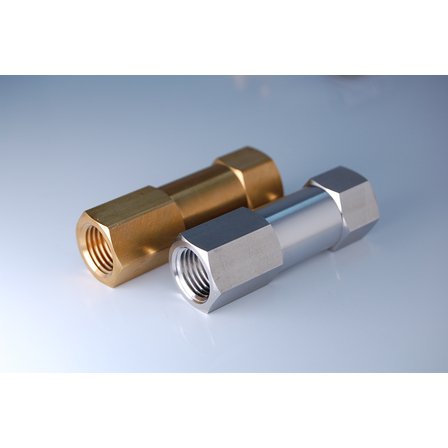

General-purpose check valve (non-return valve) 'CF Series'
Reduce the load on sealing materials! A general-purpose check valve that achieves low cost.
The CF series is a versatile backflow prevention valve with a proven track record for gases, liquids, and special fluids. The double-touch method using O-rings and metal seals reduces the load on the sealing material. Its simple structure allows for a low price. A wide range of diameters and sealing materials are available. 【Features】 ■ Check valve (backflow valve, check valve, non-return valve) ■ Achieves low cost through simple structure ■ Reduces load on sealing material with double-touch method ■ Extensive lineup of diameters and sealing materials *For more details, please refer to the PDF document or feel free to contact us.
basic information
【Specifications】 ■Fluid used: Gas or liquid that does not corrode the wetted parts ■Connection diameter: Rc1/8 to Rc1" ■Operating pressure: -0.1 to 4.9 MPa ■Pressure resistance: 7.35 MPa ■Cracking pressure: 7 kPa (standard) ■Body material: Brass / SUS316 ■Seal material: Fluoro rubber FKM (standard) 【Notes】 ■Differential pressure for use: up to 0.3 MPa (when the outlet is open to the atmosphere) *Please consider the 【CM series】 for use with liquids. ■Optional cracking pressures: 1, 20, 50 kPa *When selecting 1 kPa, installation direction is limited to outlet facing upwards. *For more details, please refer to the PDF document or feel free to contact us.
Price range
Delivery Time
Model number/Brand name
Check Valve CF Series
Applications/Examples of results
【Applications】 ■ Work machines, dedicated machines, cleaning machines, deodorizing machines, medical devices, ozone generators Various hydraulic equipment, analyzers, molding machines, extruders, boiler burners, construction machinery Coating equipment, food-related equipment, liquid drip prevention, printing machines, gas mixers, etc. *For more details, please refer to the PDF document or feel free to contact us.
