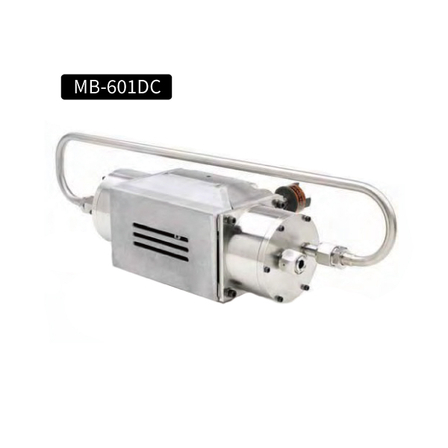

Double Containment Type Metal Bellows Pump MB-601DC
[For gas] The double bellows structure completely shuts off leaks to the outside!!
AC Motor ■ Explosion-proof options are available ■ Double bellows structure completely shuts off leaks to the outside ■ With the leak sensor function, in the event of a bellows failure, the system can be shut down simultaneously with an alarm ■ Solves issues such as leakage of radioactive gases, hazardous gases, and loss of rare, expensive gases ■ Ideal for transport, circulation, and purification processes of hydrogen and tritium in nuclear applications, helium-3 in ultra-low temperature applications, and noble gases and fluorine gases in semiconductor applications The metal bellows pump is a positive displacement pump that utilizes the characteristics of a flexible stainless steel bellows diaphragm. It can be used as a vacuum pump for gases or as a booster compressor. *For more details, please refer to the PDF document or feel free to contact us.
basic information
■ Maximum discharge flow rate: 140.0 L/min (60Hz) or more ■ Maximum achievable vacuum level: -74.5 kPaG or more ■ Maximum operating (discharge) pressure: 275.0 kPaG ■ Helium leak rate: 1×10‐8 Pa·m3/sec ■ Connection diameter: 1/2 inch VCR female ■ Suction temperature range: 0 to 80℃ ■ Installation ambient environment: Temperature: 0 to 40℃ / Humidity: RH 85% or less ■ Motor type: Open type ■ Rated power supply voltage: Single-phase AC 115/230V 50/60Hz ■ Rated current: 11/5.5A ■ Rated rotational speed: 1425 / 1725 RPM ■ Output: 3/4 HP ■ Insulation class: B *For more details, please refer to the PDF document or feel free to contact us.
Price information
For more details, please contact us.
Delivery Time
Model number/Brand name
Metal Bellows Pump MB-601DC
Applications/Examples of results
For gas use *For more details, please refer to the PDF document or feel free to contact us.
