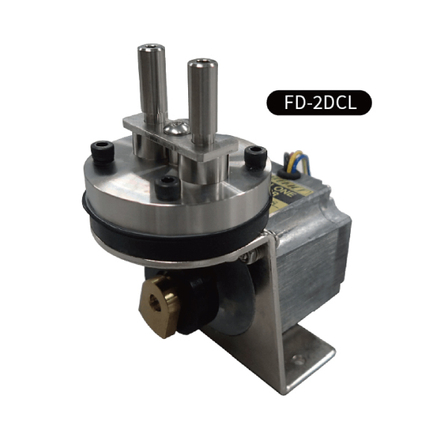

<DC Liquid Specifications> Diaphragm Pump FD-2DCL
Liquid-use cleaning solution, suitable for transferring corrosive fluids such as printer ink! Liquid specification diaphragm pump.
DC Motor ■ Ideal for transporting corrosive fluids (cleaning solutions, printer inks, etc.) ■ Equipped with a brushless motor, capable of variable speed operation as a standard feature *For more details, please refer to the PDF document or feel free to contact us.*
basic information
■Maximum discharge flow rate: 0.5L/min or more ■Maximum achievable vacuum level: -30.0kPaG or more ■Maximum operating (discharge) pressure: 100.0kPaG ■Suction and exhaust tube diameter: Φ6.35mm ■Mounting shape: Z type (standard) ■Suction temperature range: 0 to 60℃ ■Installation surrounding environment: Temperature: 0 to 40℃ / Humidity: RH 85% or less ■Rated power supply voltage: DC 24V ■External operation control: External input voltage DC 0 to 5V ■Rated current: 0.46A ■Rated rotational speed: 3500RPM ■Output: 9W ■Insulation class: E ■Weight: 0.40kg *For more details, please refer to the PDF document or feel free to contact us.
Price range
Delivery Time
Model number/Brand name
Diaphragm Pump FD-2DCL
Applications/Examples of results
For liquid use *For more details, please refer to the PDF document or feel free to contact us.
