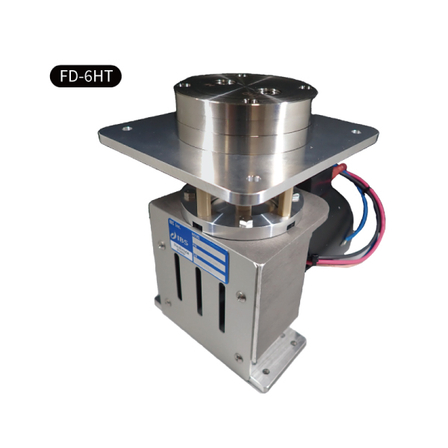

<AC High Temperature Type> Diaphragm Pump FD-6HT/FD-10HT
[For gases] High airtight design ensures perfect gas flow! Ideal for gas transfer and circulation.
AC Motor ■ High airtightness, ideal for gas transfer and circulation ■ Improved corrosion resistance in standard specifications, suitable for high-temperature gases up to 180°C *For more details, please refer to the PDF document or feel free to contact us.*
basic information
■ Maximum discharge flow rate FD-6HT: 6.0L/min (60Hz) or more FD-10HT: 10.0L/min (60Hz) or more ■ Maximum achievable vacuum level FD-6HT: -40.0kPaG or more FD-10HT: -50.0kPaG or more ■ Maximum operating (discharge) pressure FD-6HT: 60.0kPaG FD-10HT: 100.0kPaG ■ Connection diameter: Rc1/4 ■ Suction temperature range: 0 to 180℃ ■ Installation ambient environment: Temperature: 0 to 40℃ / Humidity: RH 85% or less ■ Rated power supply voltage: AC100V 50/60Hz ■ Rated current: 0.6A ■ Rated rotational speed: 1250 / 1550 RPM ■ Output: 25W ■ Insulation class: E ■ Weight: 3.1kg
Price range
Delivery Time
Model number/Brand name
Diaphragm Pump FD-6HT/FD-10HT
Applications/Examples of results
For gas use *For more details, please refer to the PDF document or feel free to contact us.
