426MHz band 2-button specific low-power wireless remote control


426MHz band 2-button specific low-power wireless remote control

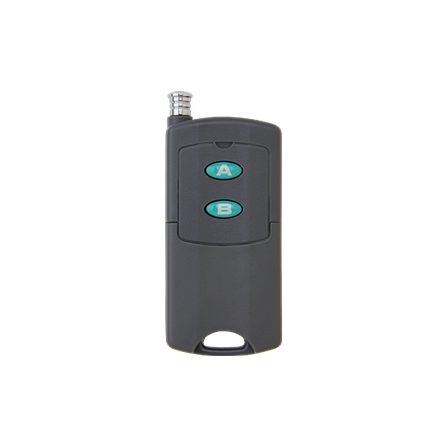

wt-02-ph001.png wt-02-ph002.png

A long-range remote control at 426 MHz that can switch a single contact ON/OFF or remotely operate two contacts.

【Function】 It is possible to switch between ON/OFF for one contact and to operate two contacts. By using a specific low-power radio in the 426 MHz band and having obtained the technical conformity mark, it enables stable long-distance communication exceeding 200 meters in line of sight and allows for easy installation without the need for a license. 【Application】 Remote control for two systems of ON/OFF operations to enhance safety and efficiency on-site. It can be used for remote control in situations where two actions need to be controlled individually, such as opening/closing and stopping (e.g., electric shutters), or ON/OFF and alarms (e.g., equipment activation and buzzers). It helps solve more advanced remote operation needs, such as complex equipment control in factories and facilities, and multifunctional safety measures at construction sites.

To the product page of the manufacturer's site.

basic information

【Other Features】 ■ Compact and lightweight ■ Can be combined with receiver WR-01A and CDT-RX-03M

Price information

Available for purchase from one unit. For price details, please visit our website.

Price range

P2

Delivery Time

P3

For more details, please contact us.

Model number/Brand name

WT-02A

Applications/Examples of results

【Purpose】 Two-system ON/OFF operation to enhance safety and efficiency on-site. It can be used for remote control in situations where two actions need to be controlled individually, such as opening/closing and stopping (e.g., electric shutters), or ON/OFF and alarms (e.g., equipment startup and buzzers). It helps to address more advanced remote operation needs, such as complex equipment control in factories and facilities, and multifunctional safety measures at construction sites.

Line up（4）

Model number overview
WT-01A 426MHz band 1 contact specific low-power wireless remote control
WR-01A 426MHz band specific low power wireless remote control receiver (2 contact output)
CDT-TX-03M 426MHz Band Specific Low Power Telecommand Transmission Wireless Module (6 Contact Inputs)
CDT-RX-03M 426MHz Band Specific Low Power Telecommand Receiver Wireless Module (6 Contact Output)

catalog（2）

Download All Catalogs

426MHz Specific Low Power Telecommunication System WT-01A / WT-02A / WR-01A
