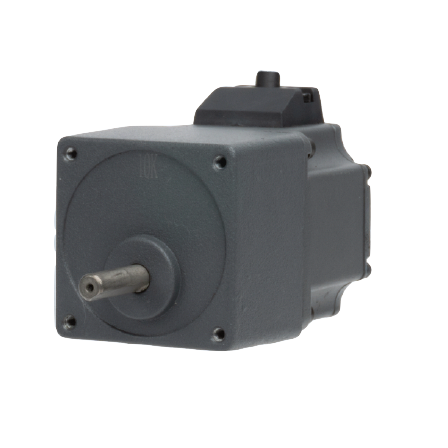

Brushless Parallel Axis Geared Motor for Semiconductor Manufacturing
Cost optimization for wafer transport devices. High torque and space-saving design specialized for basic operations.
In the semiconductor manufacturing industry's wafer transport process, stable operation of equipment and high reliability are required. On the other hand, with the multi-axis nature of transport lines, controlling equipment costs has also become an important issue. Expensive motors with excessive functions can drive up the overall cost of the equipment. Our PGM series specializes in the basic operations of "turning and stopping" necessary for transport devices, adopting a simple design that eliminates complex electronic controls, thereby providing a high-quality drive system at a reasonable cost. 【Usage Scenarios】 - Driving conveyor lines for wafer transport - Multi-axis drive units for transport devices - Automation of transport equipment where space-saving is required 【Benefits of Implementation】 - Optimization of equipment introduction costs through simple design - Realization of compact and high-torque transport using planetary gears - Securing high price competitiveness in mass production projects
basic information
【Features】 - A wide lineup ranging from rated output of 20W to 500W - Compatible with three power supplies: DC24V, AC110V, and AC220V - Compact and high-torque design using planetary gears - Gear head shapes available in parallel axis, hollow shaft flat, and orthogonal axis - Various control drivers for intuitive operation 【Our Strengths】 Kuru Co., Ltd. is a specialized company that handles a wide range of products from low-voltage battery-driven motors to various geared motors. In addition to product sales, we provide support for selecting the optimal motors and drivers according to design specifications, operational training after delivery, and troubleshooting, ensuring reliable operation in the field.
Price information
By stripping away excessive features and focusing on basic performance, we have achieved an overwhelmingly low price of "less than half" compared to conventional domestic manufacturers' equivalent products (brushless motor + planetary gear). The drastic cost reduction of the motor alone dramatically lowers the manufacturing cost of the entire equipment. Prices vary depending on the combination of voltage, output, gear shape, and driver, so please request a detailed estimate. It demonstrates its maximum effectiveness when implemented in bulk for mass production machinery (volume discount).
Delivery Time
Model number/Brand name
PGM Series
Applications/Examples of results
As a drive module that balances space-saving and high output, it is ideal for projects with strict budget and space constraints. 【Main Application Examples】 Manufacturing FA and automation equipment: Industrial machinery that requires reliable speed and torque control in limited space, such as small conveyor drives, indexing table rotation, lifters, and packaging machines within factories. Small AGVs and automated transport robots: Standardly compatible with DC24V battery drive. Used as the drive axle or power source for small AGVs (automated guided vehicles) that autonomously navigate within factories and warehouses. Verification and testing environments for next-generation technologies: Contributing to rapid prototyping as a "mobility and drive source" incorporated into platforms for prototyping new mechanisms and conducting demonstration experiments. We respond to requests such as "I want to arrange motors orthogonally to match the layout of the equipment" or "I want to procure the same motor cheaply in large quantities" with three types of gear shapes (parallel axis, L type, R type) and overwhelming cost advantages. Customizations during mass production, such as the addition of non-excited brakes, can also be flexibly accommodated.
Line up（5）
| Model number | overview |
|---|---|
| PGM60 Series | （□60mm / 20W・50W） |
| PGM80 Series | （□80mm / 50W・75W・100W） |
| PGM90 Series | （□90mm / 75W・100W・150W・300W・500W） |
| PGM104 series | （□104mm / 150W・300W・500W） |
| All models | *All models offer the option to choose from gear head shapes: parallel axis (S1), hollow axis flat L type (S2), and orthogonal axis R type (S3). *Power supply specifications include DC24V, AC110V, and AC220V. |
