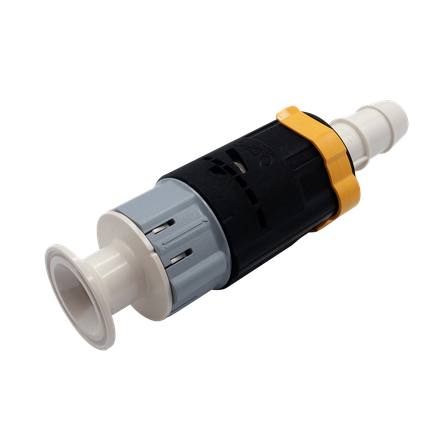

Rotary SD 16 Series
Large-diameter sterile disconnector
Sterile separation, disconnection, and cutting are possible for 3/4" inch and 1" inch tube inner diameter piping applications.
basic information
Specifications; Maximum Operating Pressure; When connected: Up to 60 psi (4.1 bar), Up to 75 psi (5.17 bar) for 48 hours When disconnected: Up to 10 psi, 0.7 bar OPERATING TEMPERATURE 34°F to 104°F (1°C to 40°C) Connection Sizes; 3/4" and 1" Hose Barb, 1 1/2" Sanitary (19.0 mm, 25.4 mm, 38.1 mm) Sterilization; Gamma: Up to 50kGy irradiation. Autoclave: One cycle up to 266°F (130°C) for 60 minutes
Price range
Delivery Time
Applications/Examples of results
Aseptic cutting, aseptic separation, aseptic disconnection Aseptic disconnection of a 3/4” inner diameter tube
Related Videos
catalog（2）
Download All Catalogs
Recommended products
Distributors
CPC Colder Products Company has 37,400 employees (FY12) and an annual revenue of approximately 810 billion yen (\$8.1 billion FY12). It is listed on the S&P 500 and the New York Stock Exchange and is a division of the American company Dover. CPC is one of the world's largest manufacturers of resin couplings (quick disconnects). The CPC Japan Office operates as a division of Swep Japan Co., Ltd., which is part of the American DOVER CORPORATION group. CPC is a company that possesses non-spill technology to prevent liquid leakage during connection and disconnection, hybrid connection technology for fluids and electricity, misconnection prevention technology using IC tags, sterile connection and disconnection technology, and a unique push-button connection and disconnection technology. It manufactures engineering plastics, super engineering plastics, metal couplings, and fittings.
