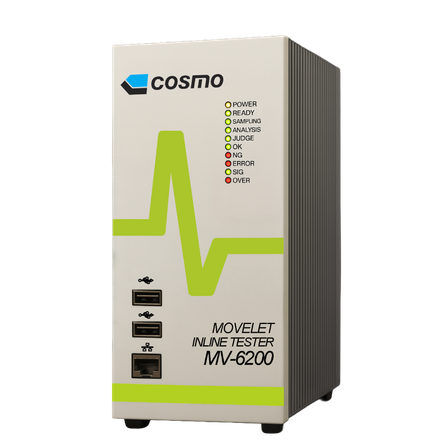

Noise and Vibration Tester Movelet MV-6200
![MV-6200 cg画像 [復元].png](https://image.mono.ipros.com/public/product/image/2000687028/IPROS12648632006673801941.png?w=280&h=280)
Automatically performs inline inspection for noise and vibrations! It makes judgments similar to those made based on the human senses!
The Movelet is a waveform analysis system (noise inspection system) developed for the purpose of performing in-line automatic inspections of sounds and vibrations. It captures the sound and vibrations generated from the product under test and conducts quantitative analysis to make judgments similar to those made based on the human senses. The Movelet uses an analytical technique called "fluctuation conversion" to perform enhancement processing of a specific frequency band so that it can be used for inspection at production sites where there is a lot of noise and sound. We also offer the Movelet analysis tool "MVA-62i," which consists of three types of programs. The MV-6200 performs automatic judgments based on the criteria determined using the waveform analysis tool. 【Features】 ■ Analyzes and quantifies waveforms of sound or vibration. ■ Can inspect for cracks and breaks using the sound of tapping the product under inspection. ■ Emphasizes specific frequency bands using the analysis method called "fluctuation conversion." ■ Inspections in noisy production environments also possible. *For more details, please refer to the PDF document or feel free to contact us.
basic information
【Others】 ■ Movelet Analysis Tool "MVA-62i" - Analyze the waveform data of the product to be tested to determine the parameters required for in-line inspection. - Quantify the result using 9 different judgment criteria. - Display up to 8 waveforms simultaneously on the PC screen and compare them based on the judgment criteria. ■ Movelet Inline Tester "MV-6200" - 3 languages switchable (Japanese, English, Chinese) - Built-in multiplexer - Save up to 100 waveform data within the tester. - 9 types of judgment functions *For more details, please refer to the PDF document or feel free to contact us.
Price range
Delivery Time
Model number/Brand name
MV-6200
Applications/Examples of results
【Analysis examples】 ■Engine noise test ■Motor noise test ■Hammering test for crack, fissure, damage, etc. in ceramics ■Office equipment noise test *For more details, please refer to the PDF document or feel free to contact us.
