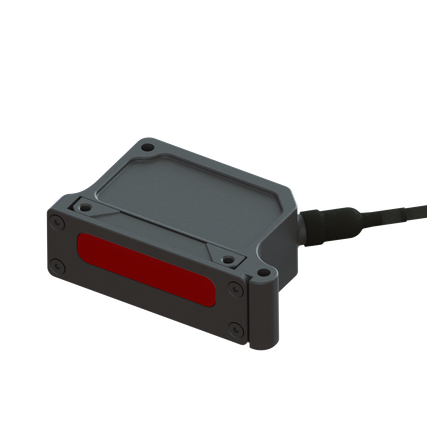

RHL5 Laser Mutation Sensor
High-precision and high-durability laser mutation sensor.
The RHL5 Laser Ride Height Sensor is a high-precision laser displacement sensor developed for motorsports and high-performance vehicles. It features class-leading measurement accuracy and fast response performance in a compact and robust aluminum housing, making it suitable for a wide range of applications including ride height measurement, suspension analysis, and chassis deformation measurement. The RHL5 is available in two measurement ranges of 200mm and 500mm, supporting high-speed measurements of up to 4kHz. Some parameters can be adjusted via CAN, allowing for optimal sensor settings while mounted on the vehicle.
basic information
- Laser displacement sensor pursuing compactness, high precision, and robustness - Measurement range = 200 mm (60 to 260 mm), 500 mm (100 to 600 mm) - Some parameter settings can be changed via CAN - Measurement frequency = 250, 500, 1000, 2000, or 4000 Hz (can be changed via CAN) - Output = 1 to 5 VDC - Supply voltage = 11 to 30 VDC
Price range
Delivery Time
Applications/Examples of results
- Ride height measurement - Suspension setting - Chassis deformation analysis - Body deflection measurement
