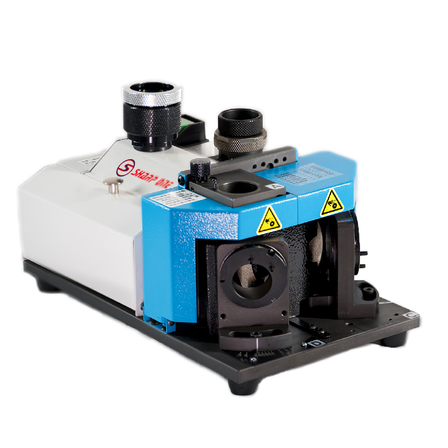

SHARP ONE Drill Grinding Machine M-01-ABT
The cone drill and straight (candle) drill can be sharpened, and it can also sharpen tungsten rods, serving three functions in one device.
By adopting a newly developed positioning chuck set, anyone can perform thinning processing, and adjusting the drill tip is also easy. Additionally, with the dedicated lens, adjusting the tip of small-diameter drills can be done easily as well.
basic information
<Processing Capability> Conical Drill: Φ2.0～Φ13.0mm Tip Angle: 90°～140° Straight Drill: Φ3.0～Φ13.0mm (Candle Type) Tip Angle: 165°～180° Tungsten Rod: Φ2.4・Φ3.2 *Φ1.6・Φ4.0・Φ4.8 require separate collets. <Power Supply> AC100V 50/60Hz <Standard Accessories> Collets: Φ2.0～Φ13.0mm (12 pieces) Collets for Tungsten Rod: Φ2.4・Φ3.2 (1 piece each) Grinding Stones: Conical Grinding HSS Stone (1 piece) Candle Grinding HSS Stones (3 pieces) Diamond Stone for Tungsten Rod (1 piece) <Main Unit Dimensions> L: 296mm × W: 18mm × H: 170mm Weight: 14.5kg
Price range
P3
Delivery Time
P4
The availability may change depending on stock status.
Applications/Examples of results
Grinding of drills for metalworking and sheet metal Grinding of tungsten rods
