[Valqua No. 6500 Processing Example] Gasket for Pumps
We will introduce a case where a water jet cutting machine was used to cut directly from CAD data with high precision!

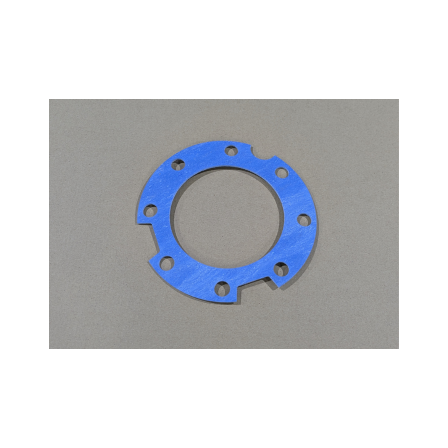

We would like to introduce a case where a gasket for a pump was manufactured from a non-asbestos joint sheet "Vulcan No. 6500" with a thickness of 2mm, based on the customer's drawing. The shape was complex, based on a ring with a diameter of φ180mm × φ115.4mm, featuring notches and multiple bolt holes (16 holes/32 holes). Using our water jet cutting machine, we cut directly from CAD data with high precision. 【Case Overview】 ■ Material: Vulcan No. 6500 ■ Product: Gasket for pump ■ Shape ・ Based on a ring with a diameter of φ180mm × φ115.4mm ・ Complex shape with notches and multiple bolt holes (16 holes/32 holes) ■ Processing Method ・ Cut directly from CAD data with high precision using a water jet cutting machine *For more details, please download the PDF or feel free to contact us.
basic information
【Features of Water Jet Cutting】 ■ No need for molds, low cost, and short delivery time ■ Direct processing from drawings ■ High-quality cutting with no thermal impact ■ Easy repeat orders with data storage *For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please download the PDF or feel free to contact us.
catalog（1）
Download All Catalogs
Recommended products
Distributors
Daiko is a manufacturer specialized in processing various industrial products, including gaskets and packing. With industry-leading processing equipment, including one of Japan's largest water jet cutting machines, and a wide range of materials such as joint sheets, rubber, resin, and metal, we meet our customers' diverse needs. Leveraging the technology and experience we have cultivated over 50 years, we provide high-quality, short-lead-time, and low-cost products to contribute to solving our customers' challenges. To respond to our customers' varied needs, Daiko's production bases are equipped with various processing facilities. Among them, the water jet cutting machines, with a total of four installed at our Osaka headquarters and Tokyo branch, boast one of the largest scales in the country. The maximum processing range is W4,000 × L5,500 mm, allowing for the high-precision manufacturing of large-diameter gaskets and packing. By maximizing material efficiency, we achieve the provision of 'high quality at low cost.'
