Examples of processing glass cloth gaskets
Supports circular shapes with PCD holes using water jet processing.

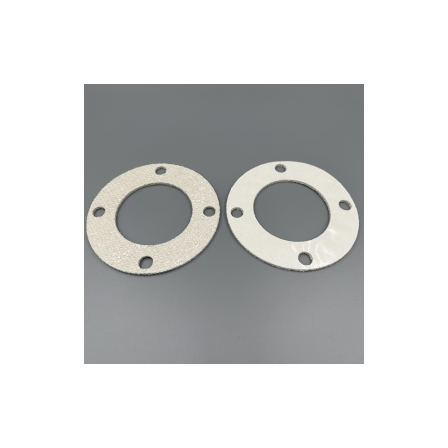

Processing Case Overview Product Name: Glass Cloth Gasket Dimensions: φ155 × φ90 (PCD130, 15φ-4) This case involves the processing of a circular gasket made from glass cloth material (3.2t with tape). In addition to outer and inner diameter processing, it includes bolt holes specified by PCD, and was manufactured for sealing applications in industrial equipment flanges. To maintain the unique layered structure of the fiber material, water jet processing, which allows for non-contact machining, was adopted, achieving both dimensional accuracy and reproducibility. Product Features (Glass Cloth) 〇D5400 This gasket is made by applying natural rubber to glass cloth and molding it into a specified shape. It has excellent thermal insulation properties and is environmentally friendly as it is non-asbestos. There are various processing methods, including sewing, allowing for large diameter processing. It is used for high-temperature duct sealing.
basic information
Processing Method (Water Jet Cutting) 〇 Water Jet Cutting Features Fixed Text A water jet is a hydraulic cutting machine that uses high-pressure water to cut materials. It processes by spraying high-pressure water. By changing the injection nozzle according to the processing material, high-quality products can be produced in a short time. Additionally, the dimensional tolerances that were significantly affected by traditional manual processing are greatly improved, resulting in stable processing accuracy. The taper on the cutting surface from press processing can also be improved with water jet cutting.
Price range
Delivery Time
Applications/Examples of results
Q&A Q: Is it possible to achieve high-precision processing with glass cloth materials? A: High-precision processing is possible with water jet cutting while maintaining the fiber structure. Q: Can you accommodate prototyping and small-scale production? A: We flexibly support prototyping and small-lot processing based on drawings. Q: Is it possible to consult on material selection according to application? A: We will propose the optimal materials and configurations based on the usage environment and conditions. For processing glass cloth gaskets, contact Daiko. Daiko provides comprehensive support for various industrial sealing materials, including glass cloth gaskets, from material selection to processing method proposals and shape considerations. Feel free to consult us about prototyping, small lots, and custom shapes.
