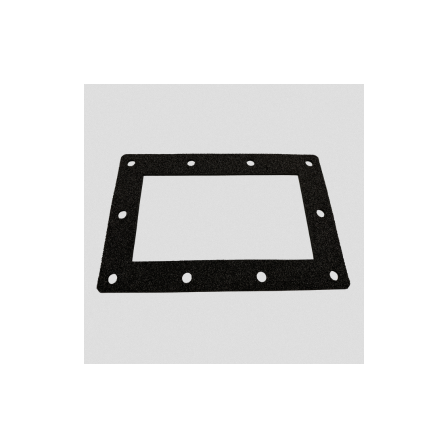

Processing example of EE-1010 (Eptsealer) frame-shaped gasket.
Custom shape support using water jet processing.
Overview of Processing Example Product Name: Frame-Shaped Seal Material Dimensions: 196W × 296L, Thickness 5t, φ12 Holes × 10 This example involves the production of seal material used around openings in industrial equipment. The frame shape and multi-point hole configuration required uniform compression and stable airtightness. By adopting water jet processing without using a die, shape accuracy and reproducibility are ensured. Product Features (EE-1010 (Eptsealer)) Seal material made from EPDM rubber, which has excellent weather resistance among foamed materials, using semi-continuous foaming. It has excellent water-tight and air-tight properties, and due to its flexible material, it can be compressed for use. It is also highly effective as soundproofing and deadening material in vehicles.
basic information
Processing Method (Water Jet Cutting) A water jet is a hydraulic cutting machine that uses high-pressure water to cut materials. It processes by spraying high-pressure water. By changing the injection nozzle according to the processing material, high-quality products can be produced in a short time. Additionally, the dimensional tolerances that were significantly affected by traditional manual processing are greatly improved, resulting in stable processing accuracy. The taper on the cutting surface caused by press processing can also be improved with water jet cutting.
Price range
Delivery Time
Applications/Examples of results
Q&A Q: Why was the frame shape necessary? A: To uniformly seal the entire perimeter of the opening and stabilize the water and air tightness performance. Q: Can you accommodate large shapes as well? A: Yes, with water jet processing, we can handle large and custom shapes without the need for molds. Q: Can I consult from the drawing stage? A: Yes, we respond from the shape consideration stage, taking into account the usage environment and installation conditions. Daiko's Capability At Daiko, we provide comprehensive support for sealing materials for industrial equipment, from material selection and processing method proposals to shape considerations. We can also flexibly accommodate prototypes, small lots, and custom shapes.
