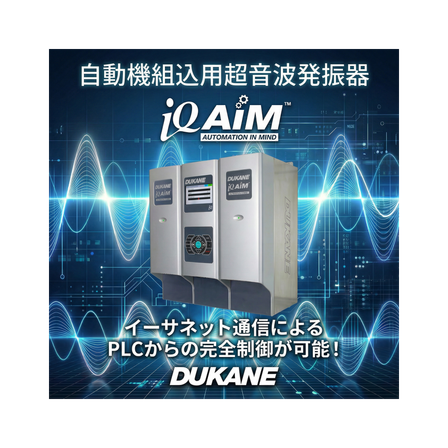

Ultrasonic welding machine dedicated oscillator iQ-AiM
New ultrasonic oscillator iQ-AiM designed exclusively for automatic devices compatible with CC-Link and Ethernet/IP connections.
The iQ-AiM series ultrasonic oscillator, specially designed for integration into automatic devices, can be connected to the device's PLC using communication modules such as CC-Link, Ethernet/IP, and Profibus, allowing all control and monitoring to be conducted from the device's PLC. The cumbersome connection of I/O wires is resolved with just one cable, eliminating the need for external amplitude control and output monitoring analog units. Ultrasonic control is possible not only through ON/OFF external signals but also through time control and energy control. Furthermore, by using an external encoder, it supports distance control, a first for probe-type oscillators. It also features Duquesne's patented output trigger function, enabling stable oscillation start and further enhancing ultrasonic welding in automatic devices.
basic information
Supported frequencies: 15kHz/20kHz/30kHz/35kHz/40kHz Maximum output: (varies by frequency and model) Supported communication protocols: Standard - Ethernet/IP, Profibus Optional - CC-Link, EtherCAT, Powerlink Trigger: External signal, output trigger (patented) Oscillation control: External signal, time, energy, distance (requires external encoder) Power supply voltage: Below 1200W is universal voltage between single-phase 100VAC to 240VAC Above 1800W is single-phase 200VAC to 240VAC The installation orientation of the oscillator can be selected as vertical (Type V) or horizontal (Type H).
Price range
Delivery Time
Model number/Brand name
iQ-AiM Series
Applications/Examples of results
Ultrasonic welding and ultrasonic cutting with various automatic devices.
Line up（24）
| Model number | overview |
|---|---|
| 15HB500-2R | 15kHz 500W 200-240VAC Horizontal type with screen |
| 15VB500-2R | 15kHz 5000W 200-240VAC Vertical type with screen |
| 15VB500-2P | 15kHz 5000W 200-240VAC Vertical type without screen |
| 20HB120-UR | 20kHz 1200W Universal voltage Horizontal type with screen |
| 20VB120-UR | 20kHz 1200W Universal voltage Vertical type with screen |
| 20VB120-UP | 20kHz 1200W Universal voltage Vertical type without screen |
| 20HB260-2R | 20kHz 2600W 200-240VAC Horizontal type with screen |
| 20VB260-2R | 20kHz 2600W 200-240VAC Vertical type with screen |
| 20VB260-2P | 20kHz 2600W 200-240VAC Vertical type without screen |
| 20HB360-2R | 20kHz 3600W 200-240VAC Horizontal type with screen |
| 20VB360-2R | 20kHz 3600W 200-240VAC Vertical type with screen |
| 20VB360-2P | 20kHz 3600W 200-240VAC Vertical type without screen |
| 30HB120-UR | 30kHz 1200W Universal voltage Horizontal type with screen |
| 30VB120-UR | 30kHz 1200W Universal voltage Vertical type with screen |
| 30VB120-UP | 30kHz 1200W Universal voltage Vertical type without screen |
| 30HB180-2R | 30kHz 1800W 200-240VAC Horizontal type with screen |
| 30VB180-2R | 30kHz 1800W 200-240VAC Vertical type with screen |
| 30VB180-2P | 30kHz 1800W 200-240VAC Vertical type without screen |
| 35HB120-UR | 35kHz 1200W Universal voltage Horizontal type with screen |
| 35VB120-UR | 35kHz 1200W Universal voltage Vertical type with screen |
| 35VB120-UP | 35kHz 1200W Universal voltage Vertical type without screen |
| 40HB090-UR | 40kHz 900W Universal voltage Horizontal type with screen |
| 40VB090-UR | 40kHz 900W Universal voltage Vertical type with screen |
| 40VB090-UP | 40kHz 900W Universal voltage Vertical type without screen |
