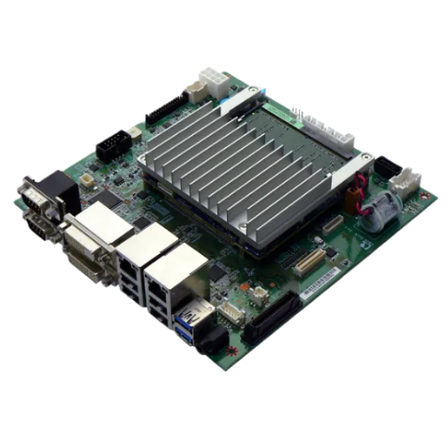

Career Board "HFCB-10"
COM Express Type 6 module compatible! Mini ITX form factor carrier board
The "HFCB-10" is a Mini ITX carrier board compliant with the HFCE-35 standard. It is equipped with a rich array of interfaces, supporting SATA, CFast, USB, PCI Express, 2 LAN ports, DVI-I, DVI-D or LVDS. It also supports line output and speaker output via HD Audio. The power supply is DC12V ±5%, and the operating ambient temperature ranges from -20 to 55°C. The dimensions are 170(W) × 170(D) mm. 【Features】 ■ Compatible with COM Express Type 6 modules ■ Mini ITX carrier board compliant with the HFCE-35 standard ■ Equipped with a rich array of interfaces ■ Includes 2 LAN ports (Wake On LAN compatible) ■ Operating ambient temperature -20 to 55°C *For more details, please refer to the related links or feel free to contact us.
basic information
【Product Specifications (Partial)】 ■SATA: 1 port SATA 3.0 (up to 6Gbps), 1 port compliant with CFast Specification Rev2.0 ■USB: 2 ports compliant with USB3.2 (up to 5Gbps), 8 ports compliant with USB2.0 (up to 480Mbps) ■Expansion Bus: PCI Express 2.0 compliant (max 5GT/s) x4Lane 1Slot / x1Lane 4Slot ■LAN: 2 ports 1000Base-T / 100Base-TX / 10Base-T (Wake On LAN supported) ■Video: 1 port DVI-I, 1 port DVI-D or LVDS ■Sound: HD Audio line output, speaker output, line input, microphone input (mono) ■Power Supply: DC12V±5% ■Operating Ambient Temperature: -20 to 55℃ ■External Dimensions: 170(W)×170(D) mm *For more details, please refer to the related links or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the related links or feel free to contact us.
