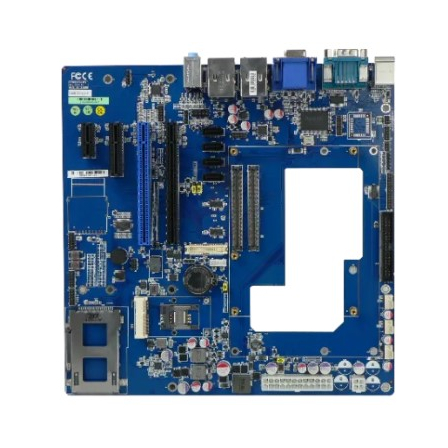

Career Board "HFCE-KIT1"
COM Express Type 6 module for evaluation! Equipped with a rich variety of interfaces.
The "HFCE-KIT1" is a Micro ATX form factor carrier board for evaluating COM Express Type 6 modules. It supports COM Express Type 6 modules such as the HFCE-10, with an operating ambient temperature of 0 to 60°C. The dimensions are 243.84(W) × 243.84(D) mm. It features 4 USB 3.0 ports and 8 USB 2.0 ports, and supports 4 SATA ports. It also accommodates a variety of video outputs including VGA, HDMI, DisplayPort, and LVDS. 【Product Specifications (Partial)】 ■SATA: 4 ports SATA 2.0 (up to 3Gbps) ■USB: 4 ports USB 3.0 compliant (up to 5Gbps) 8 ports USB 2.0 compliant (up to 480Mbps) ■Expansion Bus: PCI Express x1 Lane 1 Slot, x4 Lane 1 Slot, x16 Lane 1 Slot Mini PCIe Card 1 Slot ■LAN: 2 ports RJ-45 *For more details, please refer to the related links or feel free to contact us.
basic information
【Other Product Specifications】 ■Video: VGA, HDMI, DisplayPort, LVDS ■Sound: Line output, Line input, Microphone input ■Power Supply: AT / ATX ■Operating Ambient Temperature: 0 to 60℃ ■Dimensions: 243.84(W) × 243.84(D) mm *For more details, please refer to the related links or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the related links or feel free to contact us.
