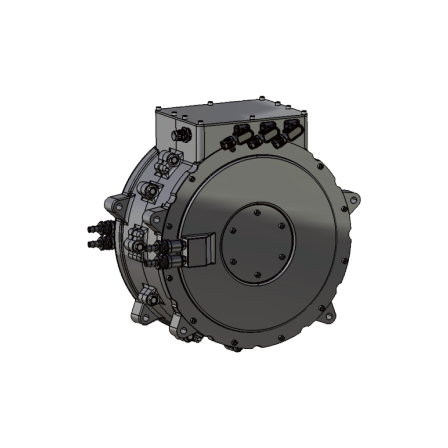

Axial Gap Motor "DAX-350"
Continuous drive with high torque is possible thanks to the liquid cooling mechanism! It is also compatible with waterproof and dustproof IP67.
The "DAX-350" is a flat, high torque density axial gap motor. It supports a power supply voltage range of 300 to 600 Vdc and enables high-precision rotation detection using a resolver. It can withstand vibrations of up to 5G. The cooling method employs liquid cooling, achieving a maximum output (60 sec) of 84 kW, a rated output (60 min) of 55 kW, and a maximum torque (60 sec) of 800 Nm. The inverter is separate. 【Features】 ■ Flat, high torque density axial gap motor ■ Continuous operation with high torque enabled by liquid cooling mechanism ■ Supports a power supply voltage range of 300 to 600 Vdc ■ High-precision rotation detection possible with a resolver ■ Waterproof and dustproof IP67, X9K, and can withstand vibrations of up to 5G *For more details, please download the PDF or feel free to contact us.
basic information
【Product Specifications】 ■ Maximum Output (60sec): 84kW ■ Rated Output (60min): 55kW ■ Maximum Torque (60sec): 800Nm ■ Rated Torque (60min): 300Nm ■ Maximum RPM: 5,000rpm ■ Power Supply Voltage: 600Vdc ■ Maximum Current: 400Arms ■ Cooling Method: Liquid Cooling ■ Inverter: Separate *For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please download the PDF or feel free to contact us.
