Large cable winding device
Prevent defects caused by winding tendencies of thin line processing! Usable as a bobbin feeder after winding.

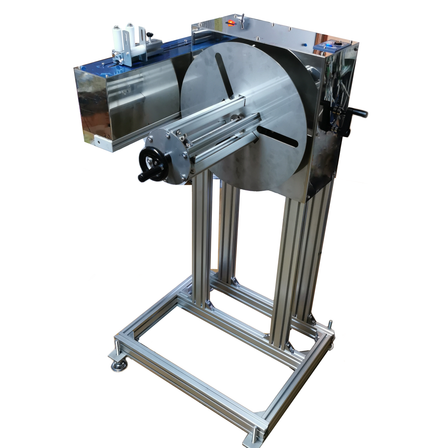

This is a large electric cable reel. It can be used for winding relatively thick cables. It is an electric opening and closing umbrella-equipped cable reel. It can wind cables with an outer diameter of up to φ20mm, with adjustable inner diameter and winding width. The ON/OFF function is controlled by a foot switch. The winding rotation speed can be controlled with stepless speed variation. The umbrella is designed to be embedded in a disc (the screw type shown in the photo can be made upon request). *For more details, please refer to the PDF document or feel free to contact us.
basic information
【Specifications】 ■Applicable wire: Relatively flexible communication wires, etc. ■Outer dimensions of the main body: W750+(150)mm × H1000mm × 600mm ■Bundled wire umbrella: φ450 × H250, load capacity 25kg Inner diameter adjustable, external extraction ■Power supply: AC100V 50/60Hz, uses DC motor for winding ■Weight: Approximately 30kg ■Alignment device: Rotating traverse unit linked type, winding machine linked type Pitch adjustment speed control type *For more details, please refer to the PDF document or feel free to contact us.
Price information
750,000 to 1,000,000 yen
Price range
P4
Delivery Time
OTHER
Made-to-order production: 45 to 90 days
Model number/Brand name
MS7500
Applications/Examples of results
For more details, please refer to the PDF document or feel free to contact us.
