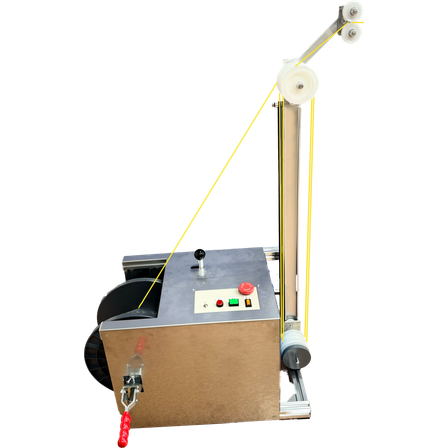

Bobbin feeding device
It is a relatively inexpensive bobbin feeding device.
It can also be used with the casting machines made by Kodera Electronics, as well as with the tabletop wire processing machines and fully automatic double-end crimping machines made by Schroniger! It is capable of feeding out more than 2 meters per second. Since it only requires rolling the bobbin and clamping it, you can easily mount heavy bobbins with wire without having to lift them by hand. The dancer control utilizes the rotation speed of the bobbin, allowing for linear response. It can prevent phenomena such as winding in reverse due to excessive rotation of the bobbin, and it holds about 3 meters of wire at the upper pulley section, making it compatible with machines that measure length under sudden pulling.
basic information
【Specifications】 ■Applicable plastic bobbins: Commercially available P-30 type, P-20 type ■Applicable wire: AWG 16 to 30 ■Applicable bobbin: P-30 (Traverse range 160mm) Load capacity 20kg ■External dimensions of the main body: W500×D310×H345mm (Post H840mm) ■Machine weight: 18kg Inner diameter adjustable, external extraction, no power required ■Power supply: AC100V 50/60Hz, feeding uses DC motor ■Weight: Approximately 60kg *For more details, please refer to the PDF document or feel free to contact us.
Price information
500,000 yen
Price range
P4
Delivery Time
P4
Model number/Brand name
BCF30
Applications/Examples of results
It can improve accuracy during wire length measurement and eliminate tangling due to kinks. To rewind the bundled wire onto a bobbin, it can be easily done with the MM450N.
