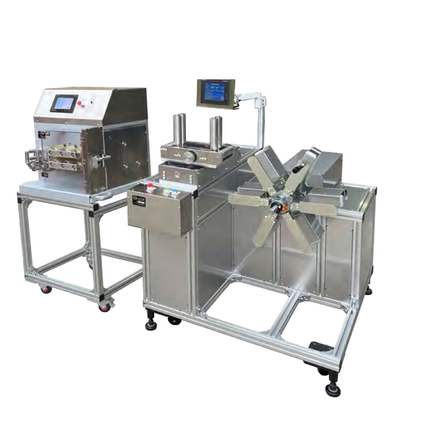

Link-type cable reel "ERS-***PS"
This machine is a device that winds wires into a bundle in conjunction with machines from the SA series. It can also perform aligned winding with constant tension through slip control. 【Features】 ■ It can be equipped with a winding umbrella suitable for winding specifications. ■ Random and aligned winding can be achieved with pitch settings for the traverse function. ■ There is a standalone operating mode controlled by external deceleration and stop input signals. ■ It can wait for the traverser to return (1/4 to 8/4 rotations). ■ There is a function that automatically performs the winding of excess length after cutting with the linked cutting machine. ■ It has a function that automatically increases the rotational torque based on the winding amount.
basic information
【Specifications】 〔ER-600PS〕 ■Motor: Servo motor 0.2kw-1/20 ■Machine dimensions: Width 960 × Depth 1020 × Height 1355 (mm) ■Machine weight: Approximately 130kg ■Rotational speed: 0~150rpm ■Maximum winding parasol: Flange diameter φ600 or less, body diameter from 200 in increments of 50, width 250 or less ■Permissible winding weight: 30kg or less ■Traverser movement: 0~250mm 〔ERS-900PS〕 ■Motor: Servo motor 0.2kw-1/45 ■Machine dimensions: Width 1300 × Depth 1250 × Height 1355 (mm) ■Machine weight: Approximately 160kg ■Rotational speed: 0~66rpm ■Maximum winding parasol: Flange diameter φ900 or less, body diameter from 200 in increments of 50, width 350 or less ■Permissible winding weight: 50kg or less ■Traverser movement: 0~350mm 〔Common〕 ■Power supply: Single-phase 100V 15A ■Measuring function: None ■Linked control: Slip method using torque control ■Traverser pitch: Movement per rotation of the winding shaft can be set in units of 1mm ■Standalone operation: Controllable by external deceleration and measuring completion (stop) input signals
