Electronic Circuit Protector + Power Distribution System REX System

The REX system provides a compact and flexible comprehensive protection and distribution solution for a DC 24V system.

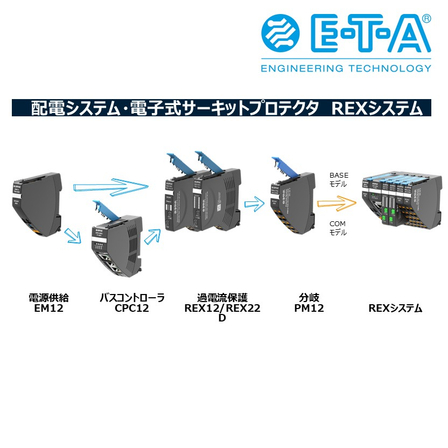

The E-T-A REX system provides optimal functionality, offering the highest transparency and remote diagnostics for machine design with a minimal number of modules, while also enabling direct access to detailed data on DC24V power distribution. This significantly improves the operational efficiency of machines and equipment. Basic configuration of the REX system: 1. Power supply EM12 2. Bus controller CPC12 (with communication function) 3. Overcurrent protection REX12 or REX22D 4. Branch PM12 ■ Features - Integration of electronic circuit protection and power distribution - Rated current: 1A to 20A (fixed and adjustable current values available) - Safe design for branch systems can be achieved in a compact space. (Can be connected up to a maximum rated current total of 40A or up to 16 channels) - Current values can be set for each branch system, allowing for quick disconnection of only the faulty circuit - Lever-type connecting connectors eliminate the need for accessories like busbars - UL1310 Class 2 certification (1A, 2A, 3A, 4A) - Communication: IO-Link, Modbus RTU, PROFINET, EtherCAT, EtherNet/IP, Modbus TCP

Website / REX12D-T

basic information

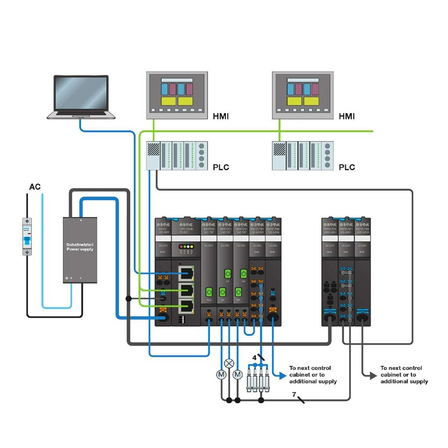

【Main Specifications】 ◎ Voltage: DC24V ◎ Current: 1A to 20A ■ Benefits - Flexible design - Easy and diverse combinations through modular design. - Reduced installation time - Shortened installation time due to innovative connection technology. - Cost reduction - No need for accessories such as jumpers or busbars. - Up to 65% space savings - Slim design with a width of 12.5mm. - Improved machine uptime - Remote access and diagnostics, clear troubleshooting, high transparency. ■ Industry 4.0 with the REX System System status monitoring to predictive maintenance - Overcurrent protection - Power distribution to load circuits - Remote operation (On/Off/Reset) - Status monitoring - Parameter settings Communication functions transmit various information to the upper control unit, including input voltage, load current, limit values, rated current information, and settings for each circuit protector. 【Applications】 ◎ Automation and process control ◎ Automation systems *For more details, please refer to the documentation. Feel free to contact us with any inquiries.

Price range

Please contact us for details

Delivery Time

Please contact us for details

Model number/Brand name

REX System

Applications/Examples of results

Centralized management from the DC24V input to the output Predicting the lifespan of the switching power supply through input voltage monitoring Predicting the lifespan of the load through alarm current monitoring Mapping each DC load through current monitoring Building big data on DC power consumption
