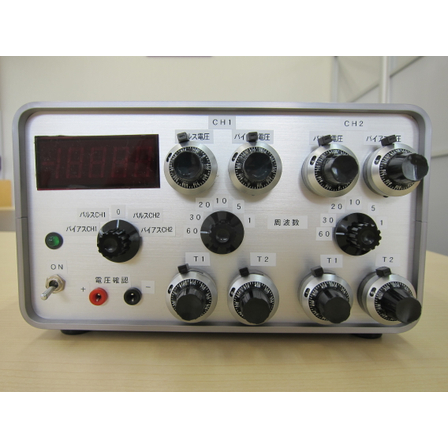

This is a power supply unit that outputs (+) side pulses and (−) side pulses at the selected frequency. The voltage values of the (+) and (−) pulses, as well as the offset voltage on the low voltage side, can also be set. There are outputs for CH1 and CH2, which can be independently configured and driven.
basic information
Output Channels: 2CH (other 4, 6CH production support available) Pulse Frequency: Selectable from 60, 30, 20, 10, 5, 1Hz Analog Switch: Ultra-low leakage current type (less than 1pA under normal operating conditions) Applied Voltage (AC): 20.0Vp-p, resolution 0.1V Low Voltage Side (DC): Variable within ±0.5V range, resolution 1mV (bias voltage) Delay Time: 10 to 100µsec, resolution approximately 10µsec (analog control) Output Terminal: BNC connector insulated type Output Voltage Check: Can be confirmed via a φ2mm terminal jack Voltage Check Switch: By switching the switch, AC and DC voltages for each channel can be confirmed Digital Voltage Display: Displays 19.999V Pulse Frequency Confirmation: Each channel has a pulse frequency confirmation terminal on the back side Operating Environment: +5 to +40℃, relative humidity 80% or less (at 35℃), no condensation Device Size: 180mm(W) × 240mm(D) × 100mm(H) Power Supply: AC100V/1A 50Hz/60Hz
Price range
Delivery Time
Model number/Brand name
MLC-02
Applications/Examples of results
Off-freak current measurement using liquid crystal cells, etc.
