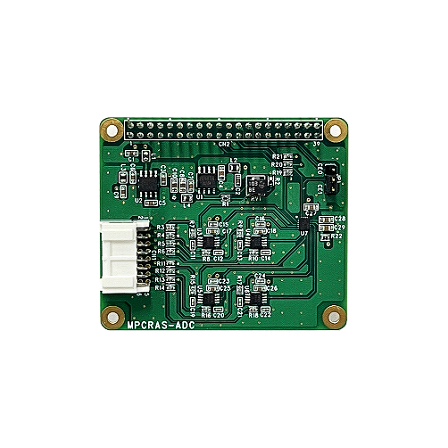

Raspberry Pi 12-bit ADC converter board
Expand the Raspberry Pi with an 8-channel 0V-5V 12-bit resolution ADC!
◎Board size: 65mm x 56mm ◎Connection with Raspberry Pi: Connect to the 40-pin expansion connector of the Raspberry Pi and communicate via SPI.
basic information
ADC Element: ADS7028 Input Channels: 8ch Resolution: 12 bits Input Impedance: 1MΩ 1LSB: 5/4096 Analog Input Range: 0V to 4.99V Conversion Range (Single-Ended): 0V to 4.99V Maximum Input Voltage: 0V to 5V Conversion Time: Maximum 1μs Cutoff Frequency: 7.2kHz (customizable) Gain: 1x Interface: SPI SPI Clock: Maximum 60MHz Current Consumption: No Load: 10mA Operating Temperature Range: -25°C to 60°C Weight: Approximately 25g Power Supply Voltage: +3.3V (Single) Range: ±0.1 Reference Voltage: 5V Range: ±0.03
Price information
¥10,780 (Excluding tax)
Price range
P2
Delivery Time
OTHER
Model number/Brand name
MPC-RASADC12
Applications/Examples of results
Raspberry Pi functionality expansion
