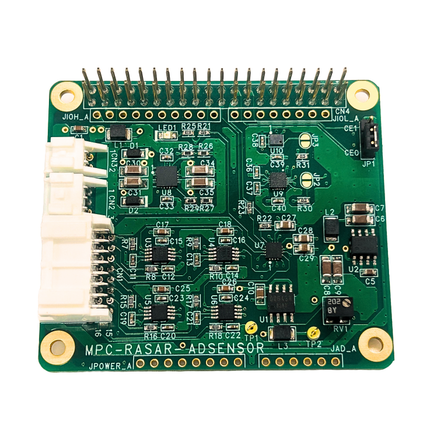

Raspberry Pi expansion 9-axis, barometric, and temperature sensor equipped AD converter board
Expansion board for Raspberry Pi equipped with a 9-axis sensor, barometric and temperature sensors, and an 8-channel 12-bit ADC.
The MPC-RASAR-ADSENSOR is an expansion board for Raspberry Pi equipped with a 9-axis sensor for acceleration, angular velocity, and geomagnetism, a barometric pressure and temperature sensor, and an 8-channel 12-bit SAR-type ADC. It supports I²C and SPI communication, making it ideal for building a multimodal sensing environment. The ADC is user-friendly with 8 channels, a multiplexer, 12 bits, 1 MSPS, and is of the SAR (Successive Approximation Register) type. The 9-axis sensor boasts the world's smallest power consumption for a 9-axis motion tracking device. The barometer is a compact digital pressure sensor with high precision and low current consumption. *It can also be modified for Arduino connectors; please contact us separately for details. Features: It connects to the 40-pin expansion connector of the Raspberry Pi, communicating with the ADC via SPI and other sensors via I2C. The ADC can be configured to operate independently with 8 analog input channels. The sensors include a 3-axis accelerometer, a 3-axis gyroscope, a 3-axis compass, and a digital motion processor (DMP) packaged together. The barometer can measure both pressure and temperature.
basic information
◆ADC Section ADC Element: ADS7028IRTER Resolution: 12 bits Linearity: ±2 LSB Input Channels: 8CH Input Impedance: 10kΩ Analog Input Range / Conversion Range: 0 to 5V Maximum Input Voltage: 5V Conversion Time: 600ns (excluding data transmission time) Cut-off Frequency: 7.23kHz (modifiable) OP-AMP: MAX44246AUA+ included Notes: The range of 0V to 30mV is a dead zone. Communication Method: SPI ◆9-Axis Sensor Section Sensor Element: ICM-20948 - Accelerometer, Gyroscope AK09916 (internally mounted in ICM-20948) - Magnetometer Resolution: 16 bits Axes: 9 axes (3-axis acceleration, 3-axis angular velocity, 3-axis geomagnetism) Communication Method: I2C ◆Barometer Section Sensor Element: DPS368XTSA1 - Barometric Sensor, Temperature Sensor Resolution: 24 bits Communication Method: I2C ◆Others Power Supply: Supplied by Raspberry Pi Current Consumption: 19.3mA Operating and Storage Temperature Range: 0°C to 60°C Humidity Range: No condensation, no exposure to static electricity discharges
Price information
¥22,800 (excluding tax)
Price range
P2
Delivery Time
OTHER
Model number/Brand name
MPC-RASAR-ADSENSOR
Applications/Examples of results
Connect to the Raspberry Pi and Arduino connectors, and expand the functions of the 9-axis sensor, barometric and temperature sensor, and AD converter.
