[For Defense Systems] 2.54mm Connector for PC/104 Maintenance and Replacement
Support for procurement and maintenance of PC/104 connectors for defense and mission systems.
In the defense sector and mission systems, long-term stable operation and reliability are required. Ensuring compatible connectors is a significant challenge in the maintenance of existing PC/104 devices and in the design of new systems. Particularly in mission-critical systems, the availability of components and the accuracy of specifications can directly impact the success or failure of a project. The PC/104 connector series addresses these procurement, design, and maintenance concerns, supporting the continuous operation of mission systems. 【Usage Scenarios】 - Maintenance and extension of existing PC/104 devices - PCB design for new mission systems - Reliable component procurement 【Benefits of Implementation】 - Secure procurement of maintenance parts - Easier component selection during design and revisions - Rapid acquisition of documentation for environmental regulation compliance
basic information

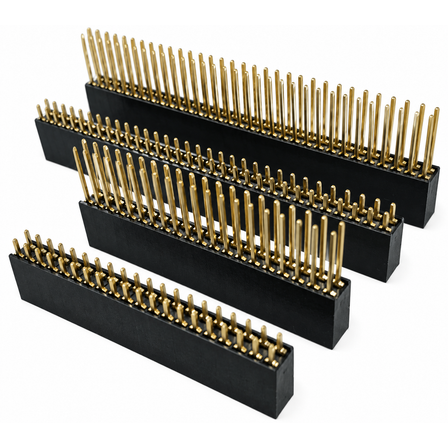

【Features】 - 2.54mm pitch connector suitable for PC/104 - Lineup of 40-pin and 64-pin options - Two selectable pin lengths (12.0mm, 3.2mm) according to application - Product drawings available - Documentation on RoHS, REACH, and PFAS can be provided 【Our Strengths】 Embedded Technology Co., Ltd. is a technology development company primarily engaged in the sale of computer boards, as well as electronic circuit design, pattern design, and FPGA logic development. We have a strong track record of deliveries in fields requiring high reliability, such as industrial equipment and research applications, and we also have experience in the space development sector. With our quick and flexible response capabilities, we can meet a variety of needs, including prototypes and small lots.
Price information
For purchases in bulk, we provide pricing based on the quantity. Please contact us for more details.
Price range
P1
Delivery Time
OTHER
The delivery time may vary depending on the quantity, so please feel free to contact us.
Model number/Brand name
PC104-64HK・PC104-64LK・PC104-40HK・PC104-40LK
Applications/Examples of results
The PC/104 connector series can be used for the design, manufacturing, and maintenance of circuit boards for industrial computers, embedded devices, measurement and control equipment, etc., that utilize the PC/104 standard. It is particularly suitable for component selection in the following scenarios: - Wanting to secure connectors for the repair and maintenance of PC/104 devices that have been operating for a long time. - Looking for 40-pin/64-pin PC/104 connectors for revisions or redesigns of existing circuit boards. - Wanting to design PC/104-compatible circuit boards using 2.54mm pitch connectors. - Wanting to choose pin lengths according to stacking configurations or circuit board structures. - Wanting to check external dimensions and recommended printed circuit board dimensions during component selection. - Needing RoHS, REACH, and PFAS-related documentation for customer deliveries or environmental surveys. This series can be considered not only for new designs of industrial equipment but also for maintenance and replacement purposes to continue using existing facilities for a long time. When designing circuit boards or selecting components, please first download the product drawings to confirm the dimensions.
catalog（1）
Download All Catalogs
