PC/104 maintenance and replacement 2.54mm connector for measuring instruments
To measurement equipment manufacturers struggling with the procurement and replacement of PC/104 connectors.
In the measurement equipment industry and data collection applications, long-term stable operation and accurate data acquisition are required. In particular, when maintaining or revising existing PC/104 devices, obtaining compatible connectors and confirming accurate specifications are crucial. The use of inappropriate connectors or errors in specifications can lead to equipment failure or data collection failures. Our PC/104 connector series addresses these procurement, design, and maintenance concerns, supporting the reliability of data collection systems. 【Usage Scenarios】 - Maintenance and repair of existing PC/104 devices - Circuit board design for new data collection systems - Securing parts for measurement equipment that will be operated for long periods 【Benefits of Implementation】 - Reduction of downtime through reliable procurement of maintenance parts - Improved development efficiency by selecting connectors that meet design specifications - Smooth compliance with environmental regulations through appropriate parts selection
basic information

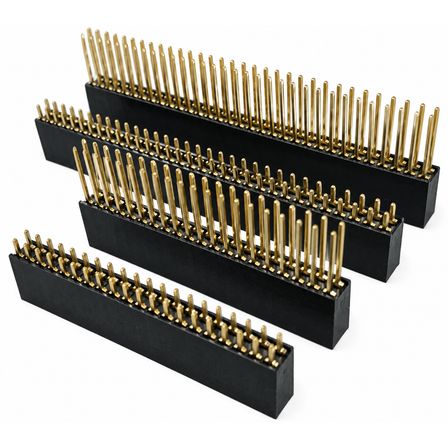

【Features】 - 2.54mm pitch connector compatible with PC/104 - Available in 40-pin and 64-pin options - Two selectable pin lengths (12.0mm, 3.2mm) to suit different applications - Support for documentation related to RoHS, REACH, and PFAS - Product drawings available 【Our Strengths】 Embedded Technology Co., Ltd. is a technology development company that specializes in electronic circuit design, pattern design, FPGA logic development, in addition to selling computer boards. We have a long track record, particularly in the fields of analog-to-digital conversion (ADC), digital-to-analog conversion (DAC), and digital I/O (DIO), with numerous deliveries in areas requiring high reliability, such as industrial equipment and research applications. We possess rapid and flexible responsiveness, capable of meeting diverse needs, including prototypes and small lots.
Price information
For purchases in bulk, we provide pricing based on the quantity. Please contact us for more details.
Price range
P1
Delivery Time
OTHER
The delivery time may vary depending on the quantity, so please feel free to contact us.
Model number/Brand name
PC104-64HK・PC104-64LK・PC104-40HK・PC104-40LK
Applications/Examples of results
The PC/104 connector series can be used for the design, manufacturing, and maintenance of circuit boards for industrial computers, embedded devices, measurement and control equipment, etc., utilizing the PC/104 standard. It is particularly suitable for component selection in the following situations: - You want to secure connectors for the repair and maintenance of PC/104 devices that have been in operation for a long time. - You are looking for 40-pin/64-pin PC/104 connectors for revisions or redesigns of existing circuit boards. - You want to design PC/104 compatible circuit boards using connectors with a 2.54mm pitch. - You want to choose pin lengths according to stacking configurations and board structures. - You want to check external dimensions and recommended printed circuit board dimensions during component selection. - You need RoHS, REACH, and PFAS-related documentation for customer deliveries or environmental surveys. Consider this not only for new designs of industrial equipment but also for maintenance and replacement purposes to continue using existing facilities for a long time. When designing circuit boards and selecting components, please first download the product drawings to confirm the dimensions.
