[For Medical Institutions] YJ Nozzle Sterilization Efficiency UP
Improves sterilization efficiency with micro-nanobubbles, and maintenance is also easy.
In medical institutions, the sterilization of instruments and equipment is extremely important for infection control. Inadequate sterilization can increase the risk of infection for patients. The YJ nozzle is expected to enhance sterilization effectiveness by generating micro and nano bubbles. Its completely straight structure makes it less prone to clogging, reducing maintenance effort. 【Usage Scenarios】 - Cleaning of medical instruments - Streamlining the sterilization process - Wastewater treatment 【Benefits of Implementation】 - Improved sterilization effectiveness - Reduced maintenance costs - Decreased environmental impact
basic information
【Features】 - Can be installed on a general-purpose pump to operate with atmospheric (gas) suction like an ejector. - Large diameter straight pipe structure that is resistant to clogging. - Usable for wastewater and sewage. - Excellent maintainability, low pressure loss, high efficiency, and capable of handling large flow rates. - Usable for industrial process applications and general drainage treatment. 【Our Strengths】 SPURT is a trading company that meets environmental needs with micro-nano bubble technology and wastewater treatment technology. We propose environmentally friendly products.
Price range
Delivery Time
Model number/Brand name
YJ-6、YJ-9、YJ-15、YJ-21、YJ-32、YJ-40、YJ-52
Applications/Examples of results
○ The microbubble and nanobubble generation device "YJ Nozzle" provides high-efficiency aeration in adjustment tanks and aeration tanks for wastewater treatment. ○ The microbubble and nanobubble generation device "YJ Nozzle" reduces odors in lake purification, dam lake purification, and underground pits. ○ The microbubble and nanobubble generation device "YJ Nozzle" supports sterilization treatment of ballast water using ozone microbubbles, as well as the reduction of COD and BOD, and neutralization treatment using carbon dioxide. ○ The microbubble and nanobubble generation device "YJ Nozzle" is used as a line mixer for gas dissolution processes (also compatible with sanitary applications). ○ The microbubble and nanobubble generation device "YJ Nozzle" mixes steam microbubbles into water and is applied in steam mixers. ○ The microbubble and nanobubble generation device "YJ Nozzle" is utilized to promote the growth and maintain the freshness of seafood and agricultural products. ○ The microbubble and nanobubble generation device "YJ Nozzle" is used in mixing nozzles for high-concentration oxygen water, ozone water, and high-speed oxidation reactions. ○ The microbubble and nanobubble generation device "YJ Nozzle" can be applied to various cleaning purposes (vegetable washing, washing machines, parts cleaning, etc.). ○ Microbubbles (various high-efficiency ozone sterilization) are also used in water purification plants and sewage treatment plants. ● For more details about the micro-nanobubble generation device YJ Nozzle, please contact us.
Related Videos
Line up（14）
| Model number | overview |
|---|---|

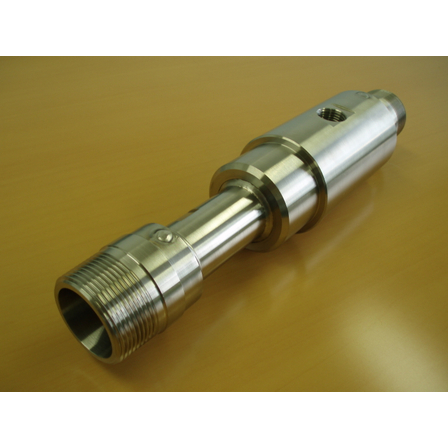

| YJ-6-inline | Required flow rate: 30L/min or more, Connection: 20A/both threaded, Material: SUS304 |
| YJ-6-inline-PVDF | Required flow rate: 30L/min or more, Connection: 20A/both threaded, Material: PVDF |
| YJ-9-inline | Required flow rate: 80L/min or more, Connection: 25A/both threaded, Material: SUS304 |
| YJ-9-inline-PVDF | Required flow rate: 80L/min or more, Connection: 25A/both threaded, Material: PVDF |
| YJ-15 | Required flow rate: 165L/min or more, Connection: 40A/one thread, Material: SUS304 |
| YJ-15-inline | Required flow rate: 165L/min or more, Connection: 40A/both threaded, Material: SUS304 |
| YJ-21 | Required flow rate: 330L/min or more, Connection: 50A/one thread, Material: SUS304 |
| YJ-21-inline | Required flow rate: 330L/min or more, Connection: 50A/both threaded, Material: SUS304 |
| YJ-32 | Required flow rate: 750L/min or more, Connection: 65A/one screw, Material: SUS304 |
| YJ-32-inline | Required flow rate: 750L/min or more, Connection: 65A/both threaded, Material: SUS304 |
| YJ-40 | Required flow rate: 1,150L/min or more, Connection: 80A/one thread, Material: SUS304 |
| YJ-40-inline | Required flow rate: 1,150 L/min or more, Connection: 80A/both threaded, Material: SUS304 |
| YJ-52-F | Required flow rate: 2,000 L/min or more, Connection: single flange, Material: SUS304 |
| YJ-52-inlineF | Required flow rate: 2,000 L/min or more, Connection: both flanges, Material: SUS304 |
catalog（1）
Download All Catalogs
Recommended products
Distributors
We are a trading company that meets environmental needs with excellent products such as the micro-nano bubble (fine bubble) generation device "YJ Nozzle," the wastewater treatment system "Ozack," and the parts cleaning system "Bio Circle," which allows for the reuse of cleaning liquids. We cover a wide range of environmentally friendly and original products, including micro-nano bubbles, aeration devices, measuring instruments, and anti-corrosion coatings, and we actively propose environmental technologies and products as a specialized trading company for environmental equipment.
