Clamp Force Fine Adjustment Type Toggle Clamp - Type A -
With the A-type's clamp force fine-tuning feature, you can set it with optimal clamp force!

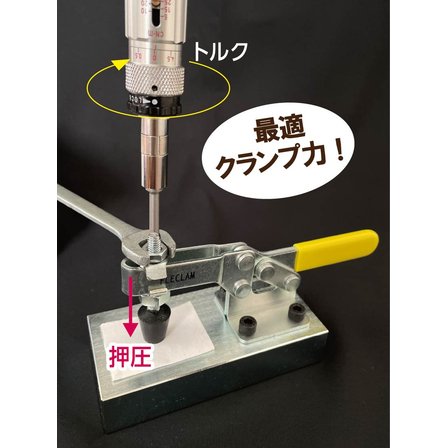

We would like to introduce the "Toggle Clamp" that we handle. ◎ Type A: Allows for fine adjustment of the clamp force to set the optimal clamp force. 【Features】 - The clamp force can be finely adjusted while the workpiece is clamped. - By using a torque driver, numerical management of the clamp force is possible. There are actual measurement graphs of clamp force for each size (reference values). 【Usage Video】 https://www.youtube.com/shorts/bQxIuiE48qY ◎ Pin Type: Suitable for visualizing the clamped state and preventing defects. 【Usage Video】 https://www.youtube.com/shorts/OY48YRUMfHg ◎ Conventional Type B * The usage methods for the Pin Type and Type A can also be viewed via the QR code in the sub-images. 【Lineup】 ■ Visible clamped state Plastic "Pin.P" ■ Visible clamped state Steel "Pin.S" ■ Fine adjustment of clamp force "A" ■ Conventional type "B" * For more details, please download the PDF or feel free to contact us.
basic information
For more details, please download the PDF or feel free to contact us.
Price information
【Pin Type Reference Price】 ○Horizontal (THL) 1,645 to 2,175 yen ○Vertical (TVL) 1,865 to 2,415 yen 【A Type Reference Price】 ○Horizontal (THL) 1,300 to 2,250 yen ○Vertical (TVL) 1,300 to 2,340 yen 【B Type Reference Price】 ○Horizontal (THL) 720 to 990 yen ○Vertical (TVL) 720 to 1,080 yen *Prices may vary depending on size, specifications, quantity, etc. For estimates and purchases, please contact us. Available for purchase from tool shops nationwide.
Delivery Time
Applications/Examples of results
For more details, please download the PDF or feel free to contact us. TEL: 0575-22-6860 FAX: 0575-24-6894 MAIL: flec@fleclam.com
