Type B Toggle Clamp
Type B: It is a conventional toggle clamp.
We would like to introduce the "Toggle Clamp" that we handle. ◎【Pin Type】 suitable for visualizing the clamping state and preventing defects 【Features】 Reducing defects = Decreases in post-processing steps when defects occur, leading to cost reductions. 【Usage Video】 https://www.youtube.com/shorts/OY48YRUMfHg ◎【A Type】 allows for fine adjustment of the clamping force to set the optimal clamping force 【Usage Video】 https://www.youtube.com/shorts/bQxIuiE48qY ◎Conventional product【B Type】 *You can also view the usage methods for the Pin Type and A Type via the QR code in the sub-images. We are currently manufacturing and selling the three types of toggle clamps mentioned above! Additionally, we offer two orientations: horizontal (THL) and vertical (TVL). 【Lineup】 ■ Clamping state visible plastic "Pin.P" ■ Clamping state visible steel "Pin.S" ■ Fine adjustment of clamping force "A" ■ Conventional product "B" *For more details, please download the PDF or feel free to contact us.
basic information
For more details, please download the PDF or feel free to contact us.
Price information

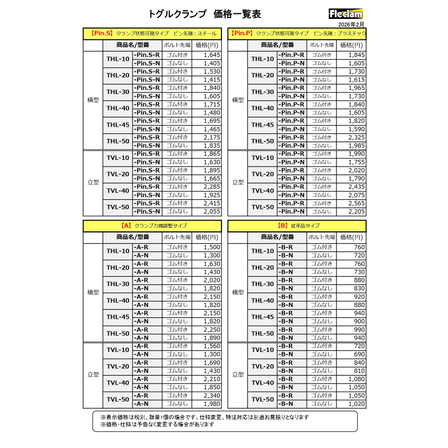

【Pin Type Reference Price】 ○Horizontal (THL) 1,645 to 2,175 yen ○Vertical (TVL) 1,865 to 2,415 yen 【A Type Reference Price】 ○Horizontal (THL) 1,300 to 2,250 yen ○Vertical (TVL) 1,300 to 2,340 yen 【B Type Reference Price】 ○Horizontal (THL) 720 to 990 yen ○Vertical (TVL) 720 to 1,080 yen *Prices may vary depending on size, specifications, quantity, etc. For quotes and purchases, please contact us.
Delivery Time
Applications/Examples of results
For more details, please download the PDF or feel free to contact us. TEL: 0575-22-6860 FAX: 0575-24-6894 MAIL: flec@fleclam.com
