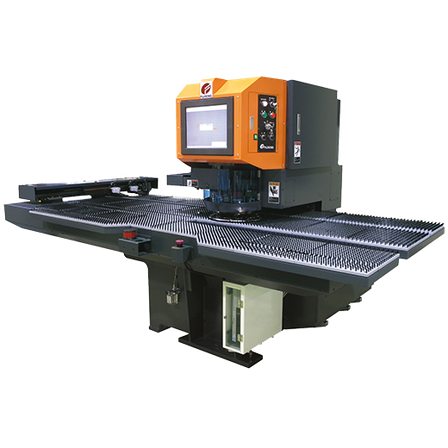

Small Punching Machine "Pα Super Punch Press II"
[Video available] A compact turret punch press with dimensions of 1200×600. It is well-suited for processing a variety of small quantities.
The "Pα Super Punch Press II" is a very compact and space-saving punching machine. Compared to other manufacturers, it has more than double the size difference. "I don't have space to install a punching machine in the factory." "I want a punching machine, but I have concerns about operation and cost." "I have been using a compact punching machine, but it has been discontinued and is no longer available." This product is recommended for companies facing such concerns. The station for mounting molds has 10 stations. Of these, 5 stations can be equipped with the following additional features: ■ An "Index Station" that eliminates the need for angled molds due to its rotation mechanism. ■ A "Multi-Tool" that can set up to 4 molds with a diameter of 10mm or less in a single station. It has the feature of being able to accommodate up to 25 stations while remaining compact. *For more details about the product, please contact us using the "Contact Us" button.
basic information
The "Pα Super Punch Press II" is a compact turret punch with dimensions of 1200×600. 【Features】 ■ Compact and low-cost high-speed type ■ Number of turret stations: 10 stations (Up to 25 stations can be used with the optional multi-holder) ■ Brush table specification reduces back scratches on materials ■ Easy input via the color touch panel mounted on the machine ■ Program operation depiction (file playback) is possible on the monitor ■ External program storage method is USB memory ■ Number of index stations: 5 The rotation mechanism eliminates the need for angled molds at this station [Applicable model: PαS10MXV-126II] 【Options】 □ Multi-holder A holder that can set up to 4 molds with a diameter of 10mm or less at one station [Applicable model: PαS10MXV-126II] □ Import of CAD data (DXF) For other functions and details, please contact us via the 'Contact Us' button.
Price range
Delivery Time
Model number/Brand name
PαS
Applications/Examples of results
Please contact us.
Related Videos
Line up（8）
| Model number | overview |
|---|---|
| PαS10MV-126CII | ■ Pressing capacity: 20t ■ Maximum processing plate thickness: t=3.2 (steel) ■ No index ■ Table specification: roller |
| PαS10MV-126BII | ■ Pressing capacity: 20t ■ Maximum processing plate thickness t=3.2 (steel) ■ No index ■ Table specification: Brush |
| PαS10MXV-126CII | ■ Pressing capacity: 20t ■ Maximum processing plate thickness t=3.2 (steel) ■ With index ■ Table specification: roller |
| PαS10MXV-126BII | ■ Pressing capacity: 20t ■ Maximum processing plate thickness: t=3.2 (steel) ■ With index ■ Table specification: brush |
| PαS10AV-126CII | ■ Pressing capacity: 20t ■ Maximum processing plate thickness: t=6.0 (steel) ■ No index ■ Table specification: roller |
| PαS10AV-126BII | ■ Pressing capacity: 20t ■ Maximum processing plate thickness: t=6.0 (steel) ■ No index ■ Table specification: brush |
| PαS10AH-126CII | ■ Pressing capacity: 32t ■ Maximum processing plate thickness: t=6.0 (steel) ■ No index ■ Table specification: roller |
| PαS10AH-126BII | ■ Pressing capacity: 32t ■ Maximum processing plate thickness: t=6.0 (steel) ■ No index ■ Table specification: Brush |
catalog（5）
Download All Catalogs
News about this product（2）
-
We have published solutions for small-sized die presses.
Thank you very much for always viewing our products. We have published problem-solving articles based on customer feedback. 【Target Model】 ◇Fuji Kiko Compact Turret Punch Press "Pα Super Punch Press II"◇ We hope this can serve as a reference for information gathering and consideration during the introduction process. If you are interested, you can read more through the related links. -------------------------- ◆Table of Contents◆ ■ Ideal for space-saving and processing a small variety of items. What is the turret punch press "Pα Super Punch Press II"? ｜Conventional turret punches have challenges in size and workability ｜Achieving a compact size and enhanced functionality unique to Fuji Kiko ■ Contributing to cost-related problem-solving! The excellent cost performance of the Pα Super Punch Press II ｜Low initial investment costs with a compact and affordable model ｜More economical operation compared to creating press molds for each processed product ■ Easy installation and simple operation for a stress-free experience! The low barrier to introduction is also appealing ■ Summary --------------------------
-
A product video of the small-sized plate press is now available.
Thank you very much for always viewing our products. We would like to introduce our currently available product video. 【Product Video Target Model】 ◇Fuji Kiko Small Turret Punch Press "Pα Super Punch Press II"◇ ----------------------- The "Pα Super Punch Press II" is a very compact and space-saving turret punch press with a table movement range of 1,200mm x 600mm. The standard configuration includes 10 stations for mounting dies. Out of these, 5 stations are equipped with an "index station" mechanism that allows for die rotation. Additionally, an optional "multi-tool" feature can be added, allowing for the installation of up to 4 dies with a diameter of 10mm or less in a single station. By using the multi-tool feature, it is possible to set up dies equivalent to a maximum of 25 stations, providing high processing capability despite its compact size. ----------------------- We hope this information will be helpful as a reference during your research and consideration for implementation. If you are interested, you can view the video through the related link.
