Pressure-sensitive film for electronic devices: Implementation pressure measurement film
Visualizing implementation pressure to contribute to the improvement of electronic device quality.

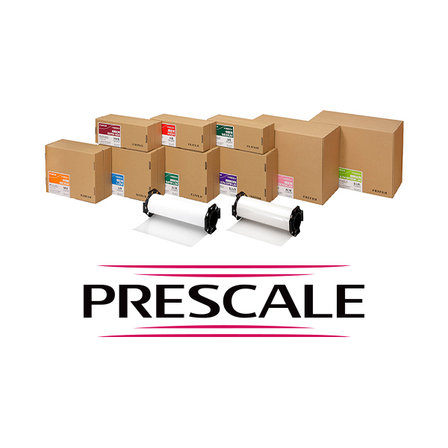

In the electronics industry, with the miniaturization and high performance of products, pressure management in the mounting process has become crucial. Insufficient or excessive mounting pressure can lead to component damage or poor connections, potentially compromising product reliability. Press scale addresses these challenges by visualizing mounting pressure across the entire surface. It allows for easy understanding of the distribution and magnitude of mounting pressure, enabling the establishment of optimal mounting conditions. 【Usage Scenarios】 - Mounting process of electronic components - Component mounting on circuit boards - Pressure measurement at connector joints 【Benefits of Implementation】 - Reduction of mounting defects - Improvement of product reliability - Streamlining of quality management
basic information
【Features】 - Areas under pressure turn red according to the intensity - Allows for immediate confirmation of pressure balance, distribution, and size across the entire surface - Covers a wide pressure range (0.006 to 300 MPa) - Available in two-sheet and mono-sheet types - Accuracy: ±10% or less 【Our Strengths】 We provide press scale products that utilize Fujifilm's precision coating technology. We support product selection tailored to customer needs and contribute to solving challenges in the implementation process.
Price range
Delivery Time
Applications/Examples of results
【Usage Examples (Excerpt)】 ■ Automotive-related ■ Printed circuit board-related ■ Electronics-related ■ Flat panel display-related *For more details, please refer to the related links or feel free to contact us.
Recommended products
Distributors
Our Measurement Film Solutions Division offers a variety of products, including high-temperature press scales and UV scales. We have the film "Press Scale," which allows for easy confirmation of invisible pressure and pressure distribution, and the revolutionary thermal distribution visualization film "Thermo Scale," which enables simple judgment of thermal distribution through color changes. Additionally, we provide a wide range of excellent inspection and measurement products that enhance precision, efficiency, and stability in manufacturing, inspection, and testing processes, all developed from the production processes of Fujifilm products.
