Press Scale for Molds: Visualization of Surface Pressure Distribution
Visualizing the pressure distribution of the mold contributes to quality improvement and cost reduction.
In the mold industry, the uniformity of surface pressure distribution, which affects product quality, is crucial. Uneven surface pressure can lead to dimensional defects and premature failure of products. Press scale enables the visualization of surface pressure distribution in mold manufacturing, addressing these challenges. By using press scale, it contributes to the optimization of mold design, improvement of manufacturing processes, and enhancement of product quality. 【Usage Scenarios】 - Measurement of surface pressure distribution in molds - Verification of pressure distribution in press forming and injection molding - Validation of mold design - Quality control of products 【Effects of Implementation】 - Quality improvement through visualization of surface pressure distribution - Extension of mold lifespan - Cost reduction by decreasing defective products - Early detection of issues during the design phase
basic information

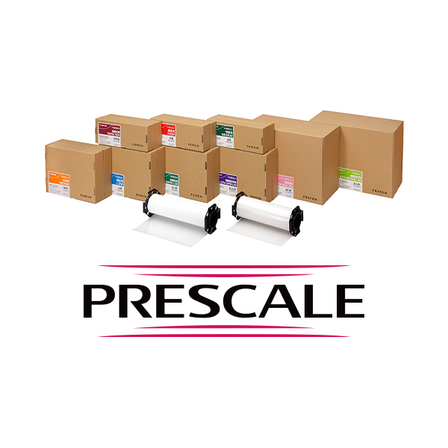

【Features】 - Changes to red color depending on the pressure applied and its intensity - Allows for a quick overview of the pressure balance, distribution, and size across the entire surface - Supports a wide range of pressure levels - Available in two-sheet and mono-sheet types 【Our Strengths】 We offer a variety of inspection and measurement products, including the pressure measurement film "Presscale." Our products contribute to the high precision, efficiency, and stability of manufacturing and inspection processes, stemming from the production processes of Fujifilm products.
Price range
Delivery Time
Applications/Examples of results
【Usage Examples (Excerpt)】 ■ Automotive-related ■ Printed circuit board-related ■ Electronics-related ■ Flat panel display-related *For more details, please refer to the related links or feel free to contact us.
Recommended products
Distributors
Our Measurement Film Solutions Division offers a variety of products, including high-temperature press scales and UV scales. We have the film "Press Scale," which allows for easy confirmation of invisible pressure and pressure distribution, and the revolutionary thermal distribution visualization film "Thermo Scale," which enables simple judgment of thermal distribution through color changes. Additionally, we provide a wide range of excellent inspection and measurement products that enhance precision, efficiency, and stability in manufacturing, inspection, and testing processes, all developed from the production processes of Fujifilm products.
