Pressure Image Analysis Device "Presscale Station"

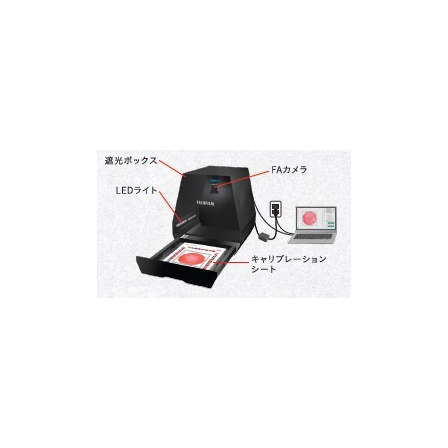

Read the pressure scale with a high-resolution FA camera and an LED-equipped reading device, efficiently quantifying and analyzing pressure information!
We would like to introduce our pressure image analysis device, "Presscale Station." Thanks to the light-shielding structure and engineering design of the reading device, it reads the Presscale with stable accuracy, obtaining detailed pressure data with a resolution of 0.27 mm square. It automatically sets inspection frames in the color development area of the Presscale. You can set any threshold value, and it will automatically determine pass or fail. 【Features】 ■ High precision and high resolution ■ Smooth operability *For more details, please download the PDF or feel free to contact us.
basic information
【Specifications (Partial)】 ■Applicable Press Scale: LW, LLW, LLLW, 4LW, 5LW, High-Temperature Press Scale 200 LLW ■Reading Size: A4 ■Power Consumption: Approximately 28W ■Reading Device Size: Width 50cm, Height 52cm, Depth 50cm ■Reading Device Weight: Approximately 27kg *For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please download the PDF or feel free to contact us.
