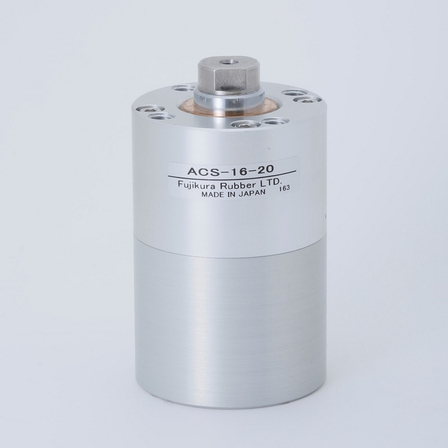

Rotary restraint function equipped double-acting air bearing cylinder
Air bearing cylinder with suppressed rod rotation.
<No Rod Rotation> Achieved by a structure that offsets the axis of the piston and rod internally. <Non-Contact Structure> An air film is formed by applying air to the air bearing pressurization port, creating a non-contact structure. *Please use the pressure for air bearings at +0.05 [MPa] or more than the driving pressure during use. ★Advantages Friction resistance "0" Further precision improvement due to no rod rotation Optimal load control for the target workpiece Excellent responsiveness and high durability
basic information
ACD-12-20 Pressure receiving diameter Φ12 Stroke 12mm ACD-16-20 Pressure receiving diameter Φ16 Stroke 20mm ACD-20-30 Pressure receiving diameter Φ20 Stroke 30mm The above are standard products. Other sizes can be accommodated as custom orders.
Price range
P2
Delivery Time
OTHER
Model number/Brand name
ACD series
Applications/Examples of results
Semiconductor manufacturing equipment Inspection equipment Bonding equipment Polishing equipment
