Circuit board assembly
Supports 0201 size implementation and narrow adjacent implementation! Possesses advanced implementation technology and abundant know-how.

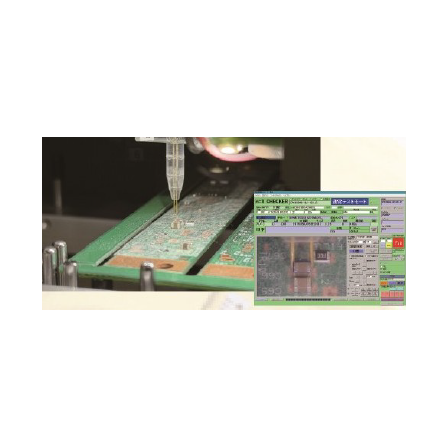

We would like to introduce the "PCB assembly" that we handle. Through the development of assembly technology in collaboration with industry and academia, including experts, we possess advanced assembly techniques and extensive know-how, achieving narrow adjacent assembly with a 0.1mm gap between components for 0402 size parts and assembly for 0201 size parts. We have implemented nitrogen-compatible reflow across all lines, allowing soldering at the customer's required oxygen concentration. We conduct inspections of the assembly state using 3D AOI for all assembled products, ensuring assembly quality. 【Features】 ■ Full management of solder application quantity through 3D inspection across all lines ■ High-quality soldering with nitrogen-compatible reflow across all lines ■ High-quality soldering with full-chamber nitrogen atmosphere flow ■ Confirmation of soldering state through 3D X-ray inspection ■ Full inspection using 3D image inspection machines ■ Component management with humidity-controlled automated warehouses *For more details, please download the PDF or feel free to contact us.
basic information
【Other Features】 ■ Initial product verification using automatic constant measurement equipment - In the initial product verification for assembly, all resistors and capacitors are measured and inspected using automatic constant measuring instruments. - Visual inspection of all other components is also conducted. ■ Equipped with selective soldering baths and automatic soldering robots - Allows for the selection of soldering methods suitable for the product. *For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please download the PDF or feel free to contact us.
