Quick Connect Valve 700
A reliable rack connection solution that supports the cooling efficiency of data centers.

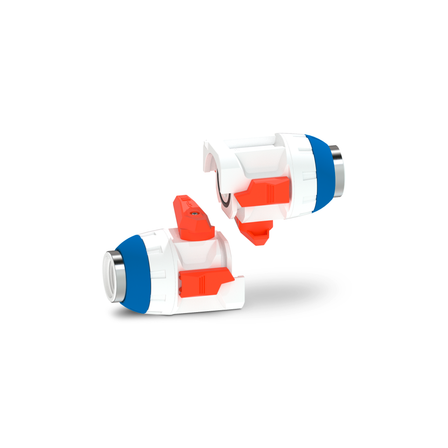

The Quick Connect Valve 700 is a patented dual ball valve specifically designed for direct liquid cooling (DLC) in data centers. Made of corrosion-resistant PVDF polymer, this valve is over 50% lighter than metal alternatives and achieves 25% better flow performance. It is designed for use between cooling distribution units (CDUs) and server racks, and features a unique two-handed safety interlock for quick and leak-free maintenance. With a lifespan of 25 years, UL 94 V-0 flame resistance, and certified environmental product declaration (EPD), it is a smart and sustainable choice for mission-critical cooling infrastructure.
basic information
Dimensions: DN25/d32 Pressure: Nominal: PN10 / Burst: 4xPN Valve body material: PVDF Temperature: 10℃ to 90℃ Weight: 0.75kg Testing standard: ISO9393
Price range
Delivery Time
Applications/Examples of results
For more details, please download the PDF or feel free to contact us.
