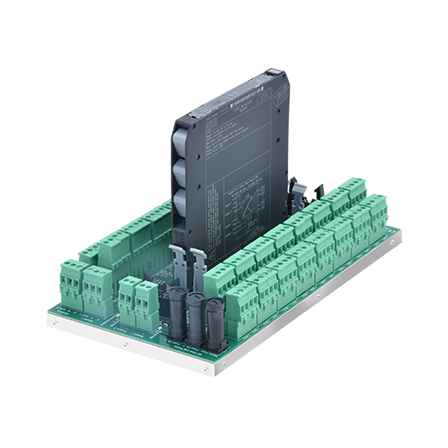

[Case Study] Multiplexer System "D5700" Series
Reduce the effort and cost associated with HART communication connections! Simplify complex systems.
We would like to introduce a case study that utilizes the HART multiplexer system "D5700" series for the purpose of controlling HART communication for multiple devices collectively. Connecting to HART-compatible devices one by one is not easy and has been associated with significant effort and costs. By aggregating HART communication from multiple instruments through a multiplexer, wiring has been simplified. Compared to traditional HART interfaces, a significantly simpler system has been achieved, reducing the number of modules while increasing the communication speed to 115,200 bps. 【Case Overview】 ■ Issue: Connecting to HART-compatible devices one by one is not easy and incurs effort and costs. ■ Reason for Adoption: Aggregating HART communication from multiple instruments through a multiplexer simplifies wiring. ■ Solution: Achieved a significantly simpler system and improved communication speed to 115,200 bps. ■ Result: Capable of expanding to a maximum of 256 devices per system. *For more details, please download the PDF or feel free to contact us.
basic information
For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please download the PDF or feel free to contact us.
Recommended products
Distributors
We are a company that designs, engineers, and manufactures a complete range of intrinsically safety products. We handle products such as intrinsically safety isolators, safety relay, garvanic isolators,termination board , Hart multiplexer solution,multiplexer systems, explosion-proof power supplies, and surge arresters. Please feel free to contact us when you need assistance.
