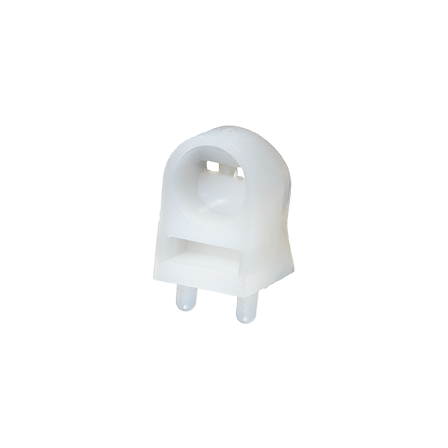

LED Mounting Spacer Round Type for 2-Leg / LDN-5300LN
LED mounting spacer round type for 2-legged / φ3, φ5 (nylon, translucent) / LDN-5300LN
This product is a nylon 66 spacer that guides the LED lead wires and adjusts the height from the circuit board to the LED for secure fixing. By ensuring a long distance between the circuit board and the LED, it becomes easier to adjust the height of the LED to match the distance to the panel display window, facilitating the alignment of the display position. Additionally, the long-type structure supports the base of the LED, helping to reduce the load on the lead wires. By holding the LED at a specified height and position, it supports the efficiency of assembly work and stabilizes the quality of implementation. Utilizing the electrical insulation properties of nylon 66, it also helps prevent electrical separation and shorts on the circuit board. This spacer is suitable for applications where it is necessary to secure a distance from the circuit board to the LED, such as placing LEDs in deep display windows, making it ideal for the implementation of electronic devices and display equipment that require height adjustment.
basic information
■Specifications - Material: Nylon 66 - Color: Semi-transparent - Heat distortion temperature: 75℃ at 1.82MPa - UL standard: UL94V-2 (material) ■Size Variation - Compatible LED: Round type for 2-legged ■EU-RoHS - Compliant with EU-RoHS2
Price information
For more details, please check our website or catalog, or feel free to contact us.
Delivery Time
Model number/Brand name
LDN-5300LN
Applications/Examples of results
We offer a variety of products suitable for various applications, including printed circuit board assembly, electronic component assembly, semiconductor assembly, relay terminal assembly, distribution board components, robot parts, industrial machinery, machine tool parts, water treatment machinery parts, FA equipment, mobile communications, mobile mobility, and base station-related components.
