LED mounting spacer round type for two-legged/LDZ-800

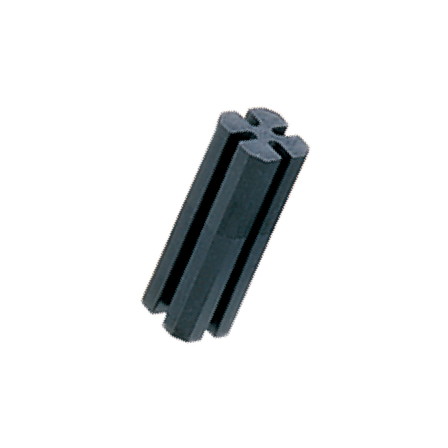

LED Mounting Spacer Round Type for 2-Leg / φ3, φ5 (PBT) / LDZ-800
This product is a PBT resin LED mounting spacer that guides the LED leads and fixes them at a vertical and uniform height relative to the circuit board. It is compatible with φ3mm and φ5mm LEDs and supports stable mounting by reducing the tilt of the LEDs. By aligning the height of the circuit board and the LEDs, it makes it easier to align with the panel holes and helps reduce the load on the leads by supporting the base of the LEDs. Additionally, it suppresses floating and tilting during soldering, supporting the efficiency of assembly work and stabilizing the quality of mounting. The PBT resin material has heat resistance, flame retardancy, and electrical insulation properties, making it suitable for use as an LED mounting component in electronic devices. This spacer is practical and well-suited for applications where it is necessary to mount LEDs at a consistent position and height.
basic information
■Specifications - Material: PBT (30% glass fiber) - Color: Black - Heat distortion temperature: 1.82MPa…200℃ - UL standard: UL94V-0 (material) ■Size Variation - Compatible LED: Round type for 2-legged ■EU-RoHS - Compliant with EU-RoHS2
Price information
For more details, please check our website or catalog, or feel free to contact us.
Delivery Time
Model number/Brand name
LDZ-800
Applications/Examples of results
We offer a variety of products that can be used for various applications such as printed circuit board mounting, electronic component mounting, semiconductor mounting, relay terminal mounting, distribution board components, robot components, industrial machinery, machine tool components, water treatment machinery components, FA equipment, mobile communications, mobile mobility, and base station-related components.
