Nylon One-Touch Spacer for Preventing Board Warping / WAN
Nylon One-Touch Spacer for Preventing Board Warping / WAN

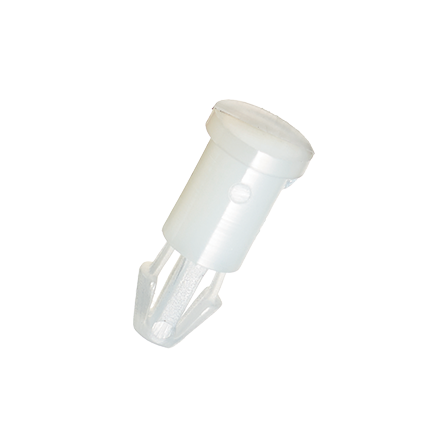

This product is a one-touch spacer that allows you to secure a circuit board simply by inserting it, made from lightweight nylon resin with excellent electrical insulation properties. The main feature is that it can secure the circuit board without the need for fastening components such as bolts or nuts, allowing for one-touch installation. By simply pushing it into the mounting holes of the circuit board or housing, the elastic claws at the tip engage with the mounting holes to hold the circuit board in place. Since it can be installed without tools, it helps reduce fastening components and improve assembly efficiency. Nylon has wear resistance, self-lubrication, and moderate elasticity, making it suitable for applications where repeated installation and removal are expected. Additionally, its excellent electrical insulation properties allow it to be used in areas where electrical separation and insulation around circuit board circuits are required. Using lightweight nylon resin contributes to weight reduction when replacing metal components, making it applicable for portable devices and electronic devices. Its tool-free installation and removal also make it convenient for layout changes during prototyping and disassembly and assembly during maintenance. With its easy one-touch fastening, this practical circuit board fixing spacer helps reduce fastening components, improve assembly efficiency, and provide electrical insulation.
basic information
■Specifications - Material: Nylon 66 - Color: Semi-transparent - Heat deformation temperature: 75℃ at 1.82MPa - UL standard: UL94V-2 (material) ■Size variations - Mounting board hole: φ1.5/φ2/φ2.5/φ3 ■EU-RoHS - Compliant with EU-RoHS2
Price information
For more details, please check our company website or catalog, or feel free to contact us.
Delivery Time
Model number/Brand name
WAN
Applications/Examples of results
We offer a variety of products that can be used for various applications, including printed circuit board assembly, electronic component assembly, semiconductor assembly, relay terminal assembly, distribution board components, robot parts, industrial machinery, machine tool parts, water treatment machinery parts, FA equipment, mobile communications, mobile mobility, and base station-related components.
