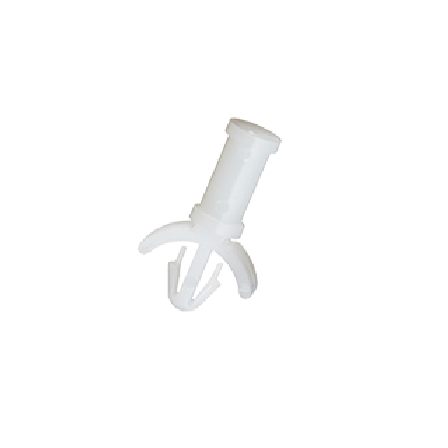

Nylon One-Touch Spacer for Preventing Board Warping / WN-V
Nylon One-Touch Spacer for Preventing Board Warping / WN-V
This product is a one-touch spacer that allows you to secure a circuit board simply by inserting it, made from lightweight nylon resin with excellent electrical insulation properties. The main feature is that it can secure the circuit board without using fastening components like bolts or nuts, allowing for one-touch operation. By simply pushing it into the mounting holes of the circuit board or housing, the elastic claws at the tip engage with the mounting holes to hold the circuit board in place. Since it can be installed without tools, it helps reduce fastening components and improve assembly efficiency. Nylon is equipped with wear resistance, self-lubrication, and moderate elasticity, making it suitable for applications where repeated installation and removal are expected. Additionally, its excellent electrical insulation properties allow it to be used in areas where electrical separation and insulation around circuit board circuits are required. Compared to using metal fastening components, it also contributes to weight reduction, making it useful for portable devices and electronic products where lightweight design is essential. The ability to install and remove it without tools is also convenient for layout changes during prototyping and for disassembly and assembly during maintenance. This one-touch spacer is practical for securing circuit boards, facilitating easy fixation, reducing the number of components, improving assembly efficiency, and providing electrical insulation.
basic information
■Specifications - Material: Nylon 66 - Color: Translucent - Heat distortion temperature: 75°C at 1.82MPa - UL standard: UL94V-2 (material) ■Size Variation - Chassis hole: φ3 (plate thickness 0.8 to 2.0) ■EU-RoHS - Compliant with EU-RoHS2
Price information
For more details, please check our company website or catalog, or feel free to contact us.
Delivery Time
Model number/Brand name
WN-V
Applications/Examples of results
We offer a variety of products suitable for various applications, including printed circuit board mounting, electronic component mounting, semiconductor mounting, relay terminal mounting, distribution board components, robot parts, industrial machinery, machine tool parts, water treatment machinery parts, FA equipment, mobile communications, mobile mobility, and base station-related components.
