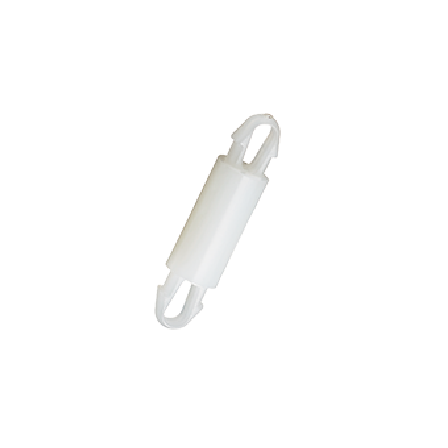

Nylon One-Touch Spacer for Chassis/PC / WN-M
Nylon One-Touch Spacer for Chassis/PC / WN-M
This product is a one-touch spacer that allows you to secure a circuit board simply by inserting it, made from lightweight nylon resin with excellent electrical insulation properties. The main feature is that it can secure the circuit board without using fastening components such as bolts or nuts, allowing for a one-touch operation. By simply pushing it into the mounting holes of the circuit board or housing, the elastic claws at the tip engage with the mounting holes, holding the circuit board in place. Since it can be installed without tools, it helps reduce fastening components and improve assembly efficiency. Nylon has wear resistance, self-lubrication, and moderate elasticity, making it suitable for applications where repeated installation and removal are expected. Additionally, its excellent electrical insulation properties make it usable in areas where electrical separation and insulation around circuit board circuits are required. Compared to using metal fastening components, it contributes to weight reduction, making it useful for portable devices and electronic products where lightweight design is essential. Its tool-free installation and removal also make it convenient for layout changes during prototyping and disassembly and assembly during maintenance. This one-touch spacer is practical for securing circuit boards, offering easy fixation, reduction of component count, improved assembly efficiency, and excellent electrical insulation.
basic information
■Specifications - Material: Nylon 66 - Color: Semi-transparent - Heat distortion temperature: 75°C at 1.82MPa - UL standard: UL94V-2 (material) ■Size variations - Mounting board hole: φ3.5 (plate thickness 1.6) - Mounting board hole: φ3.5 (plate thickness 1.6) ■EU-RoHS - Compliant with EU-RoHS2
Price information
For more details, please check our company website or catalog, or feel free to contact us.
Delivery Time
Model number/Brand name
WN-M
Applications/Examples of results
We offer a variety of products that can be used for various applications such as printed circuit board assembly, electronic component assembly, semiconductor assembly, relay terminal assembly, distribution board components, robot parts, industrial machinery, machine tool parts, water treatment machinery parts, FA equipment, mobile communications, mobile mobility, and base station-related components.
